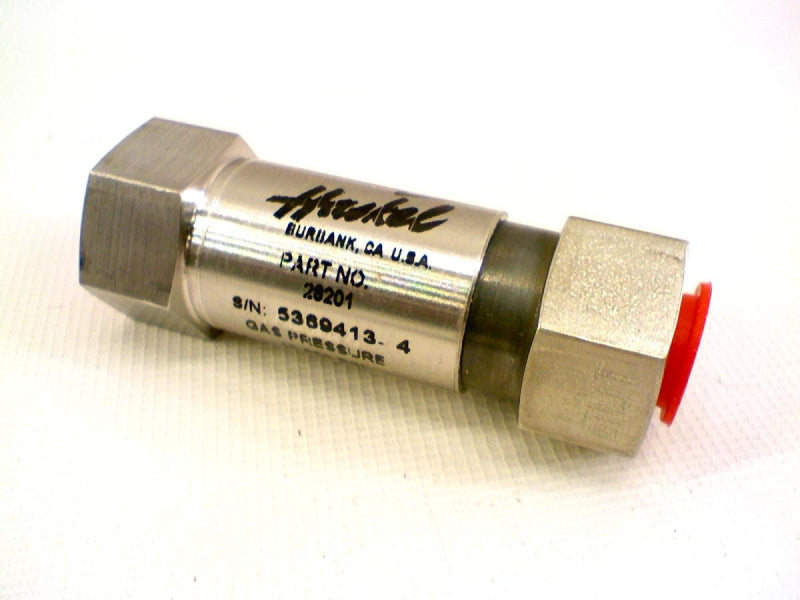

The Haskel 28201 is a high-performaning check valve engineered for demanding applications requiring extreme pressure tolerance and corrosion resistance.
Constructed from 316 stainless steel, this valve features a spring-loaded poppet design that reliably prevents backflow and ensures leak-tight sealing. It is ideal for use with various gases such as oxygen, nitrogen, helium, and hydrogen and making it suitable for critical industrial and aerospace applications.
- Superior Pressure Handling:
- Inlet pressure up to 15,000 psi (1000 bar)
- Outlet pressure up to 10,000 psi (690 bar)
- Corrosion Resistant: Made from high-grade 316 stainless steel for durability and longevity
- Spring-Loaded Poppet: Ensures reliable sealing and backflow prevention
- Universal Gas Compatibility: Suitable for oxygen, nitrogen, helium, hydrogen, and more
- Compact & Durable Design: Suitable for harsh environments and high-pressure systems
- 1/4 NPT Female Ports: Easy to integrate into existing piping systems
| Port Size | 1/4 NPT Female |
| Body Material | 316 Stainless Steel |
| Maximum Inlet Pressure | 15,000 PSI (1000 bar) |
| Maximum Outlet Pressure | 10,000 PSI (690 bar) |
| Seal Type | Spring-Loaded Poppet |
| Suitable Media | Oxygen, Nitrogen, Helium, Hydrogen, Other Gases |
| Applications | Industrial Gas Control, Aerospace, Chemical Processing, High-Pressure Systems |
