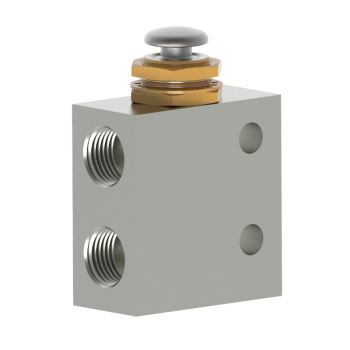

Three way miniature Push Button valve, normally closed, spring return with 1/8 pipe ports. All TAC Push Button valves feature a work hardened SST button plunger above a 15/32-32 threaded collar. Collar feature permits acceptance of a variety of TAC Air Pilot Operators (sold separately - see Related Products below), converting push button valve to an Air Piloted Valve. Button bottoms out on collar to prevent valve overstroke from Air Operator. Compact. Rugged.
- Media: Air
- Valve Function: 3-way, Spring Return
- Piping Type: Inline, Direct Piping
- Options Included: Hardened Button for Manual or Mechanical use, Panel Mounting Hardware
Port Size | 1/8 NPSF |
Number of Ports | 3 Ports |
Number of Positions | 2 Positions |
Approx Size (in) HxWxD | 1.8 x 0.63 x 1.25 |
Type of Operation | Push Button |
Flow Coefficient (Cv) | 0.38 |
Lubrication | Recommended |
Pressure Range (PSI) | 0 to 125 |
Pilot Pressure Requirements | 30 PSI 60 PSI 90 PSI 31 120 PSI 35 |
Operating Speed (Cycles/Min) | 900 |
Ambient Temperature Range (F) | -20 to 180 |
Wetted Materials | Aluminum, Brass, SST, Buna N |
Weight (oz) | 3.0 |
Compatible Operators (Sold Separately) | Air Pilot: 341A, 341AR, 341AS, 341ASR Manual: 34F, 34T Mechanical: 34B, 34C, 34CW, 34CH |
