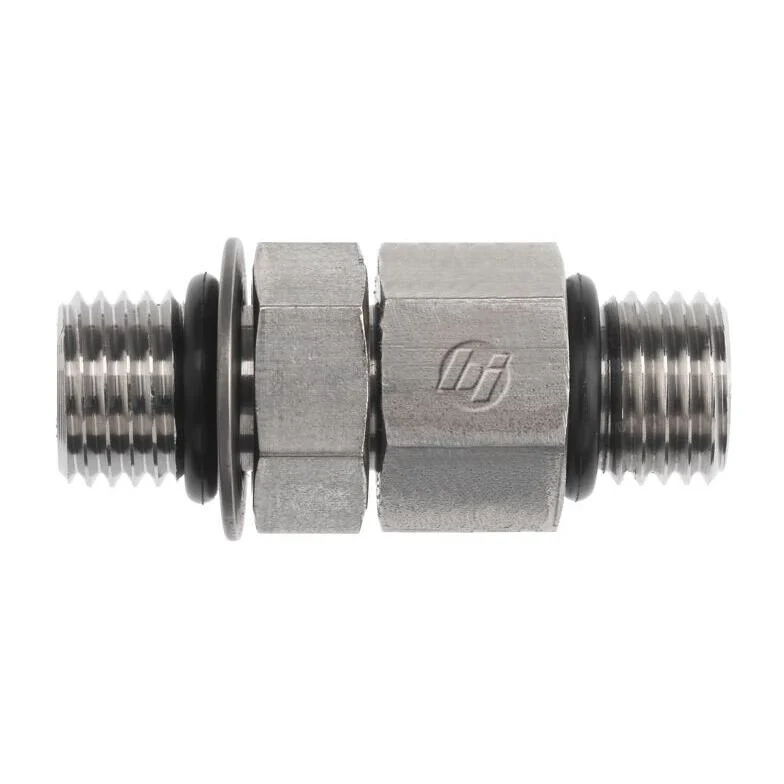

The 3474-08-08-NWO Straight Hydraulic Fitting from Brennan Industries of Texas is engineered for high-performance hydraulic applications requiring a secure and leak-resistant connection. Designed with 1/2" MORB x 1/2" MORB adjustable O-ring boss threads, it ensures reliable sealing under demanding conditions. Manufactured from durable straight steel with Cr3 plating, this fitting offers excellent corrosion resistance and long service life. Its precision machining complies with SAE J514 standards, making it suitable for both industrial and mobile hydraulic systems. Ideal for professionals seeking consistent, high-pressure performance.
Fitting Chart- 1/2" MORB x 1/2" MORB straight hydraulic fitting
- Male SAE Adjustable O-Ring Boss (B1) and Male SAE O-Ring Boss (B2)
- Thread Size: 3/4-16 on both ends with 0.391" drill
- Strong straight steel construction with corrosion-resistant Cr3 plating
- Meets SAE J514 specifications for reliability and compatibility
- Includes durable NBR O-ring/seal for leak-proof performance
- Precision-machined hex sizes: 0.875" (Body & C-Hex)
- Suitable for high-pressure hydraulic systems
| Thread B1 Type | Male SAE Adjustable Oring Boss |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.875 |
| C Hex 1 In | 0.875 |
| Overall Length L In | 1.56 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | Nbr |
| Weight Lbs | 0.16 |
