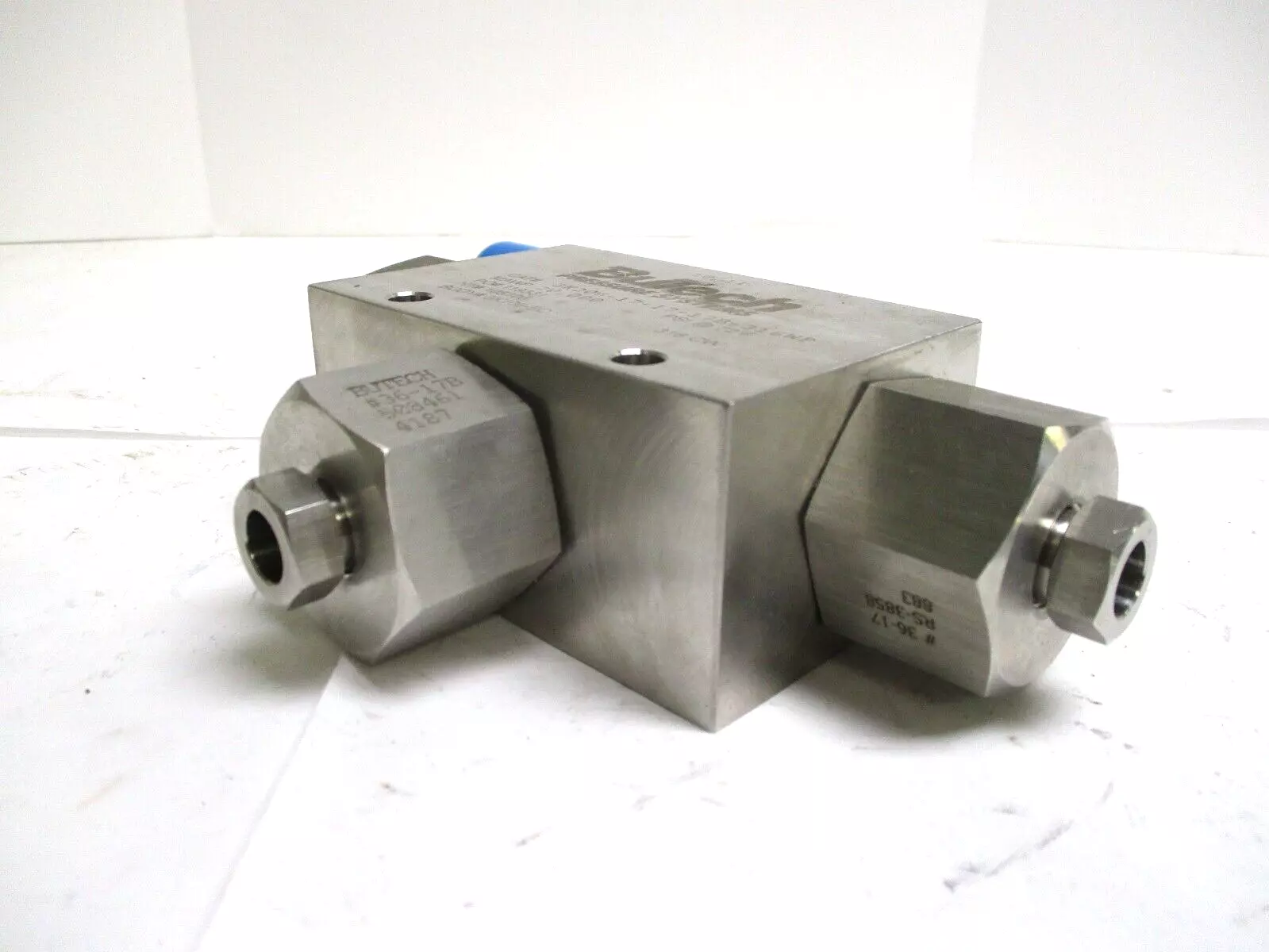

The BuTech Pressure Systems 3K206-BN-17-17-17B is a high-pressure 3-way trunnion valve designed for demanding air and fluid applications up to 15,000 PSI. Featuring a Male x Female x Female (MxFxF) configuration, it provides reliable flow control and secure system integration. Buna seals ensure dependable sealing performance under high pressure. The trunnion-mounted design reduces operating torque and enhances durability. Ideal for industrial, testing, and process control environments.
- 3-way trunnion-mounted valve rated up to 15,000 PSI
- Buna sealing for leak-resistant performance
- Reduced operating torque due to trunnion design
- Suitable for air and industrial fluid systems
- Built for long service life in high-pressure applications
| Item ID | 3K206-BN-17-17-17B |
| Product Type | Trunnion Valve |
| Category | Air Valves |
| Valve Type | 3-Way (On/Off Control) |
| Connection Type | Male x Female x Female |
| Connection Style | MNPT x FNPT x FNPT |
| Connection Size | 3/8 inch (MP Connections) |
| Pressure Rating | 15,000 PSI |
| Seal Material | Buna (NBR) |
| Flow Control Type | On/Off / 3-Way |
| Compatible Media | Air and Industrial Fluids |
| Application | High-Pressure Industrial & Test Systems |
| Installation Type | Inline |
