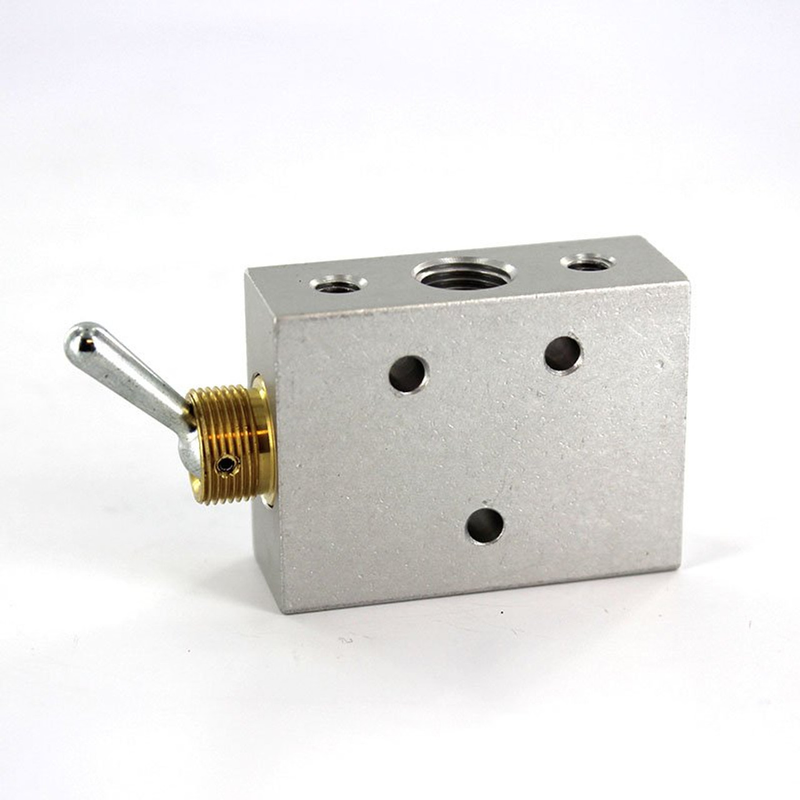

The Humphrey 41V TAC toggle valve is a compact, detented 4-way/2-position valve featuring a manual lever and exhaust metering screw, designed for precise control in pneumatic systems. With 1/8" NPSF ports, it supports flows up to Cv 0.38 and pressures ranging from 0 125?psi. Rugged aluminum and brass construction ensures durability and reliability, while the lever-actuation and detent mechanism maintain set positions under vibration. Ideal for automation, cylinder control, and small-scale pneumatic applications.
- Detented toggle lever holds valve position securely
- 4-way, 2-position design with exhaust metering screw
- Compact dimensions: ~2.47" 0.63" 1.25" for space-saving installations
- Durable aluminum, brass, stainless, and Buna-N construction
- No lubrication required; suitable for 0 125?psi and ?20? F to +180? F environments
| Part Number | 41V |
| Function | 4-way/2-position detented toggle valve |
| Port Size | 1/8" NPSF |
| Flow Coefficient (Cv) | ??0.38 |
| Pressure Range | 0 125?psi |
| Media | Compressed air or inert gases |
| Materials | Aluminum, brass, stainless steel, Buna-N |
| Size (H W D) | ~2.47" 0.63" 1.25" |
| Weight | ~0.375?lb (6.0?oz / 170?g) |
