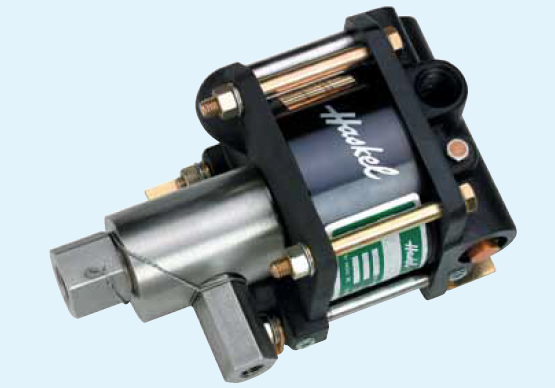

The Haskel 4B-100 is a rugged, pneumatic-driven liquid pump delivering high-pressure performance without electricity or heat. Powered by compressed air, it features a 100:1 nominal pressure ratio (actual 114:1) and reaches up to 10,600?PSI (731?bar). Compact, reliable, and easy to automate, it stalls to hold pressure without running continuously and is compatible with various liquids and liquefied gases. Built with stainless steel and durable internal components, it's ideal for hydrostatic testing, fluid transfer, and hydraulic control applications.
- Runs on compressed air no electricity, no heat
- Pressure ratio of 100:1 with actual output up to 10,600 PSI
- Stall-locks to maintain pressure without continuous operation
- Infinitely variable cycle rate for precise control
- Compact, modular design using stainless wetted parts
| Part No. | 4B-100 |
| Power | 0.75 HP (0.56 kW) pneumatic drive motor |
| Pressure Ratio | 100:1 nominal (actual 114:1) |
| Max Output Pressure | 10,600 PSI (731 bar) continuous |
| Displacement per Cycle | 0.13 in (?2 mL) |
| Max Flow | ~62 in/min |
| Wetted Materials | 303 SS pump body; UHMWPE/Buna seals |
| Drive Gas Pressure | 30 100 PSI air or clean gas supply |
| Applications | Hydrostatic testing, fluid transfer, dosing |
