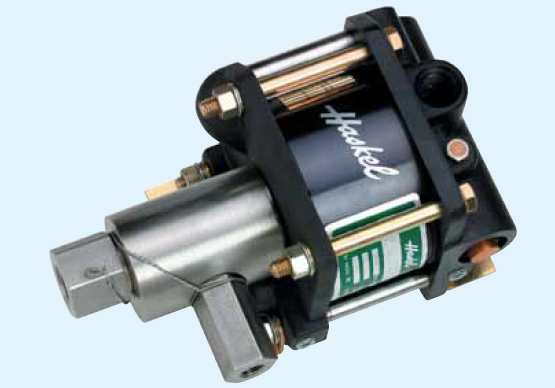

The Haskel 4B-14 is a pneumatic liquid pump designed for high-pressure applications without electricity or heat. With a 14:1 nominal pressure ratio (actual 16:1), it delivers up to 1,500?psi continuous output, making it ideal for hydrostatic testing, fluid transfer, and dosing. It features a compact, stall-to-hold design saving energy and maintaining pressure when idle. Made with stainless steel and durable seals, the 4B-14 supports a wide range of liquids and liquefied gases in demanding industrial environments.
- Runs on compressed air no electricity or ignition risk
- Raises pressure up to 1,500 psi (103 bar)
- Stall-to-hold feature keeps pressure without air use
- Infinitely variable cycle speed for accurate control
- Corrosion-resistant stainless steel wetted parts
| Model / Part No. | 4B-14 |
| Drive Power | 0.75 HP (0.56 kW) pneumatic motor |
| Nominal Ratio | 14:1 (actual area ratio 16:1) |
| Max Continuous Pressure | 1,500 psi (103 bar) |
| Displacement/Cycle | 0.9 in (?14.7 mL) |
| Drive Air | 30 100 psi clean air/gas; no lubricator needed |
| Seals | Pump: UHMWPE/Buna; Drive: Buna |
| Wetted Body | 303 stainless steel |
