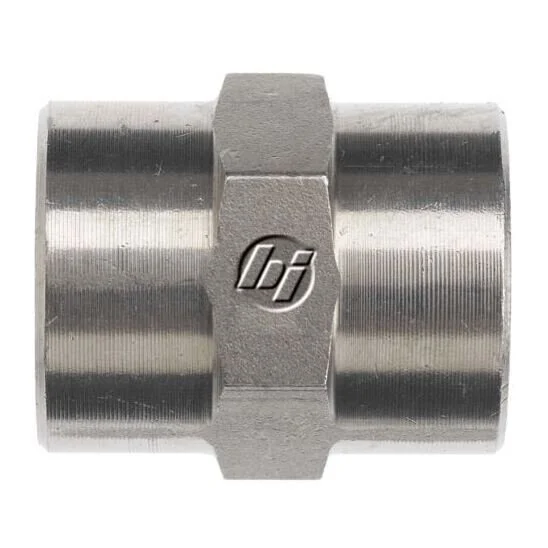

This 1/4" FNPT x 1/4" FNPT straight hydraulic fitting is crafted from durable steel with a corrosion-resistant Cr3 plating finish. Designed to meet SAE J476 standards, it features female NPTF threads on both ends for a secure, leak-free connection. Compact and lightweight, this fitting is suitable for hydraulic systems operating under dynamic pressures up to 6000 PSI. Its precise construction ensures reliable performance in demanding industrial applications.
Fitting Chart- Female NPTF threads on both ends ensure a tight, leak-resistant connection.
- Manufactured to meet SAE J476 thread specifications for compatibility.
- Constructed from durable steel for long-lasting strength and reliability.
- Corrosion-resistant Cr3 plating protects against rust and wear.
- Compact design with 0.75-in. hex for easy wrench access.
- Rated for maximum dynamic pressure up to 6000 PSI for high-performance use.
- Lightweight at approximately 0.06 lbs, ideal for efficient system integration.
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.13 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.06 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
