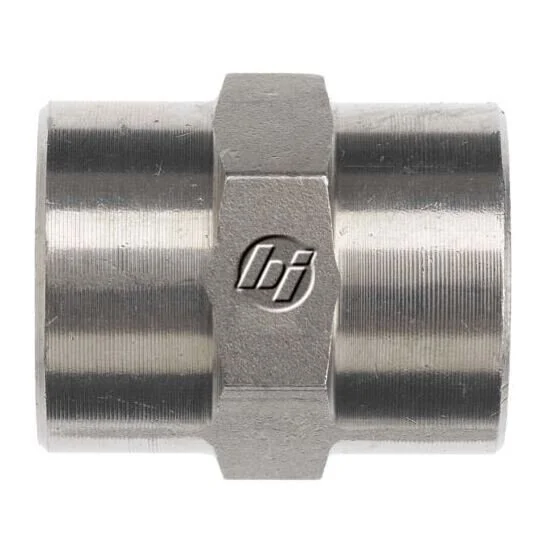

The Brennan 5000-04-04-SS is a premium 1/4" FNPT x 1/4" FNPT straight stainless steel coupling, engineered for high-pressure hydraulic and pneumatic systems. Designed with precision SAE J476 NPTF threads, it ensures a leak-tight and secure connection in demanding environments. Made from high-grade stainless steel, this fitting offers exceptional corrosion resistance and long-term durability. Ideal for fluid transfer, industrial equipment, and high-pressure applications up to 6000 PSI. Compact yet robust, it delivers reliable performance across a wide range of hydraulic setups.
Fitting Chart- 1/4" FNPT x 1/4" FNPT straight stainless steel coupling
- Precision-machined SAE J476 NPTF threads for leak-free sealing
- Built from high-strength stainless steel for maximum corrosion resistance
- Suitable for high-pressure systems up to 6000 PSI
- Compact design with 0.75" body hex for easy installation
- Ideal for hydraulic lines, industrial machinery, and fluid transfer systems
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.13 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.0937 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 0.636 |
