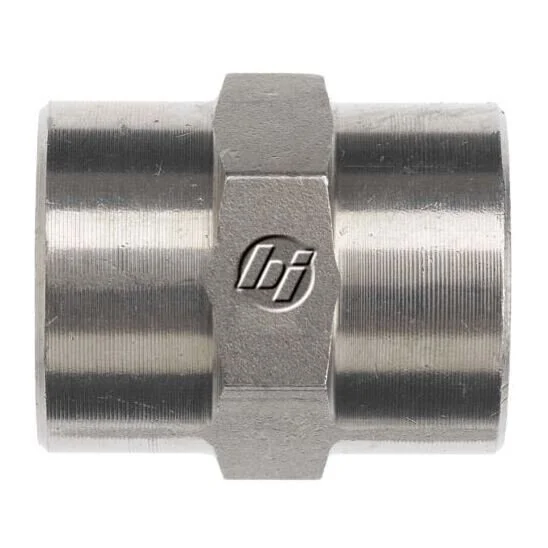

This straight hydraulic fitting features dual 3/8" FNPT (Female NPTF) threads, ideal for secure and reliable connections in hydraulic systems. Manufactured from steel with a Cr3 plating, it offers excellent durability and corrosion resistance. Engineered for high-pressure applications, it can withstand a maximum dynamic pressure of 6000 psi. Its compact design, with a 0.875" body hex and 1.13" overall length, makes it suitable for various installations.
- Dual 3/8" FNPT threads ensure versatile and secure connections
- Durable steel construction guarantees long-lasting performance
- Cr3 plating provides enhanced corrosion resistance
- High-pressure rating (6000 psi) allows for demanding applications
- Compact straight shape enables easy installation in confined spaces
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 3/8-18 |
| Thread B1 Drill In | 0.406 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 3/8-18 |
| Thread B2 Drill In | 0.406 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.13 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.1 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
