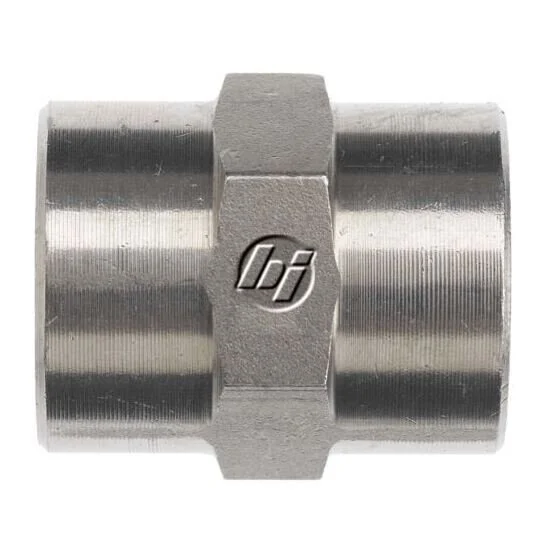

This straight hydraulic fitting features dual 1/2" FNPT (Female NPTF) threads, ensuring robust and reliable connections in various hydraulic setups. Constructed from durable steel with Cr3 plating, it offers exceptional resistance to corrosion and wear. Designed for demanding applications, this fitting can handle a maximum dynamic pressure of 5000 psi. Its practical dimensions, including a 1.125" body hex and 1.5" overall length, make it suitable for a wide range of installations.
- Dual 1/2" FNPT threads provide strong and secure connections
- Durable steel construction ensures long-lasting performance
- Cr3 plating offers superior corrosion resistance
- 5000 psi maximum dynamic pressure handles demanding hydraulic applications
- Compact straight design allows for straightforward installation
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.125 |
| Overall Length L In | 1.5 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.22 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
