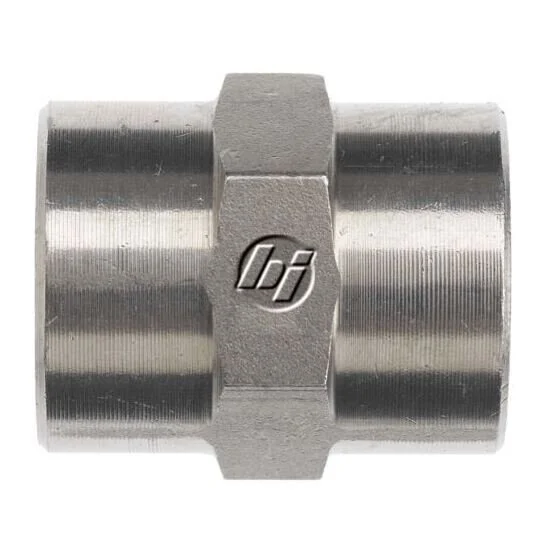

This straight hydraulic fitting is engineered with dual 3/4" FNPT (Female NPTF) threads, providing robust and leak-free connections for hydraulic systems. Crafted from high-quality steel and featuring a Cr3 plating, it delivers exceptional durability and resistance against corrosion. Capable of withstanding a maximum dynamic pressure of 4000 psi, this fitting is suitable for demanding applications. Its practical dimensions, including a 1.375" body hex and 1.53" overall length, ensure versatile and straightforward installation.
- Dual 3/4" FNPT threads facilitate secure hydraulic connections
- High-quality steel construction ensures robust and lasting performance
- Cr3 plating provides superior protection against corrosion
- 4000 psi dynamic pressure rating suits a variety of hydraulic demands
- Straight design simplifies installation in diverse setups
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 3/4-14 |
| Thread B1 Drill In | 0.719 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.375 |
| Overall Length L In | 1.53 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.3312 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
