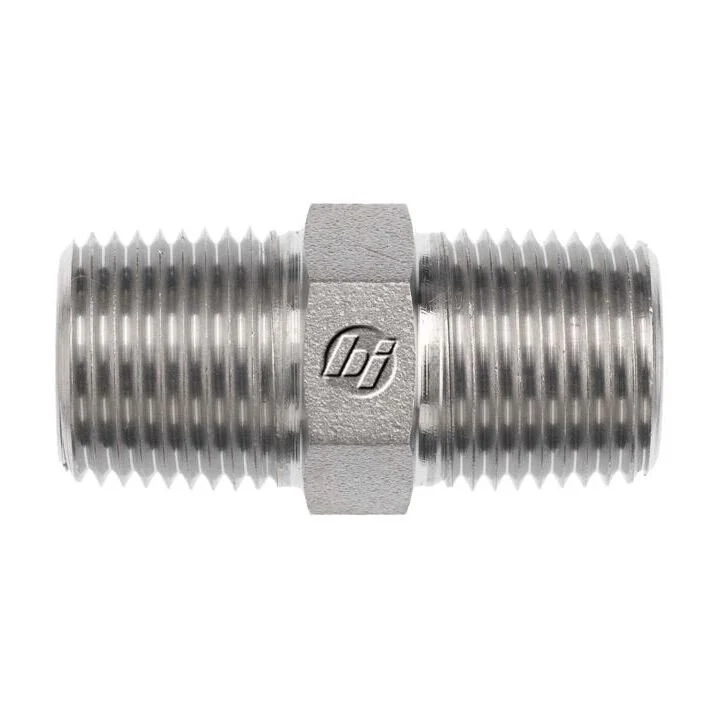

This straight hydraulic fitting features dual 1/4" MNPT (Male NPTF) threads, offering reliable and positive connections within various hydraulic circuits. Precision-engineered from steel with a Cr3 plating, it delivers excellent longevity and corrosion resistance, even in challenging environments. Built to endure high operational demands, it boasts a maximum dynamic pressure of 6000 psi. Its streamlined design, featuring a 0.625" body hex and 1.45" overall length, ensures compact and efficient integration into systems.
- Dual 1/4" MNPT threads provide secure male connections for hydraulic lines
- Robust steel construction ensures exceptional durability and strength
- Corrosion-resistant Cr3 plating extends the fitting's service life
- Straight, compact design allows for straightforward system integration
- Precisely machined NPTF threads ensure a tight, leak-free seal
- Lightweight at 0.065 lbs minimizes added system mass
- Suitable for a wide range of hydraulic applications due to its robust design
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.625 |
| Overall Length L In | 1.45 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.065 |
| Maximum Dynamic Pressure Psi | 6000 |
