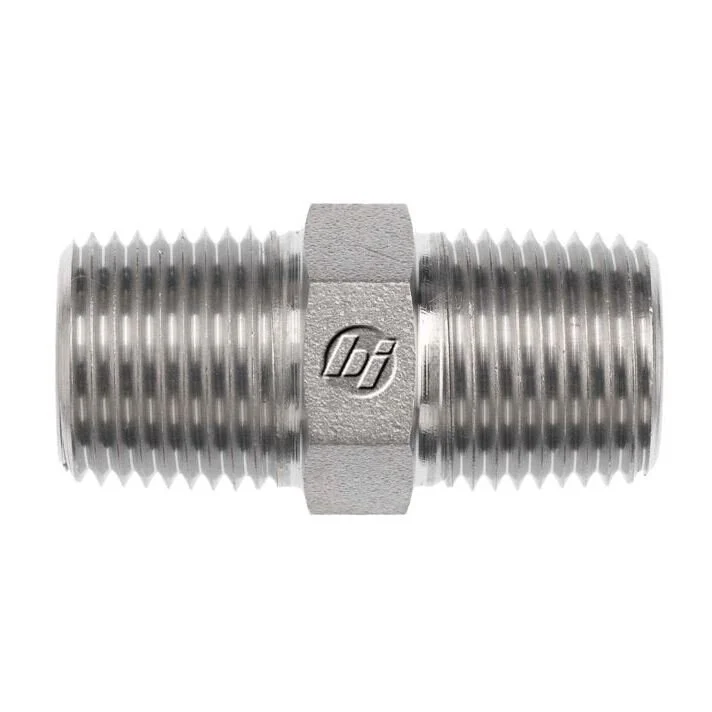

This straight hydraulic fitting is designed with dual 3/8" MNPT (Male NPTF) threads, providing reliable and efficient connections in various hydraulic systems. Expertly crafted from steel with a protective Cr3 plating, it ensures excellent durability and superior resistance to corrosion. Built for high-performance applications, this fitting can withstand a significant maximum dynamic pressure of 6000 psi. Its practical dimensions, including a 0.75" body hex and 1.45" overall length, allow for versatile and space-efficient integration.
- Dual 3/8" MNPT threads ensure secure male connections for hydraulic lines
- Robust steel construction provides exceptional strength and longevity
- Corrosion-resistant Cr3 plating extends the fitting's service life in harsh conditions
- High 6000 psi dynamic pressure rating makes it suitable for demanding hydraulic applications
- Straight, compact design allows for straightforward system integration
- Precisely machined NPTF threads guarantee a tight, leak-free seal
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 3/8-18 |
| Thread B1 Drill In | 0.406 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/8-18 |
| Thread B2 Drill In | 0.406 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.45 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.088 |
| Maximum Dynamic Pressure Psi | 6000 |
