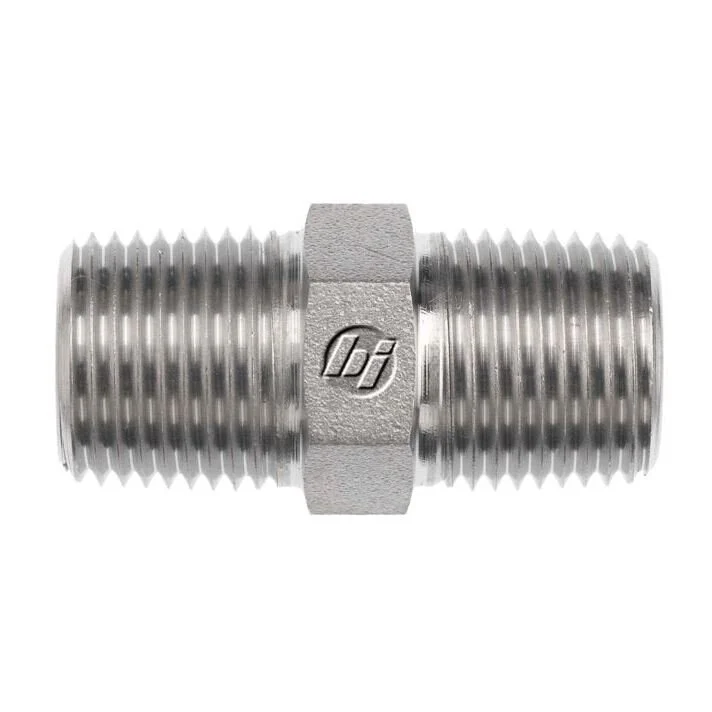

The Brennan 5404-08-04 high-pressure fitting is a straight connector featuring 1/2" MNPT to 1/4" MNPT ends for secure, leak-resistant hydraulic and fluid system connections. Built from durable straight steel and finished with Cr3 plating, this fitting provides exceptional strength and corrosion protection. Designed according to SAE J476 standards, it ensures reliable performance even in demanding industrial environments. With a compact 1.7" overall length, it fits easily into tight assemblies. Ideal for hydraulic, pneumatic, and high-pressure fluid transfer applications.
Fitting Chart- Straight connector: 1/2" MNPT to 1/4" MNPT
- Rated for high-pressure performance up to 6000 PSI
- Corrosion-resistant Cr3 plated steel construction
- Manufactured to SAE J476 NPTF thread specifications
- Compact body for easy installation in tight spaces
- Suitable for hydraulic, pneumatic, and industrial fluid systems
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.7 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.087 |
| Maximum Dynamic Pressure Psi | 6000 |
