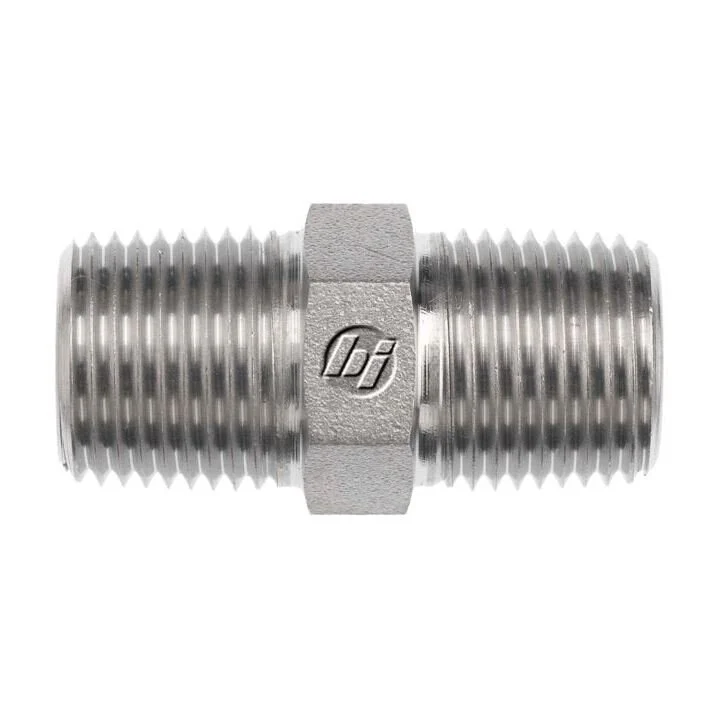

The Brennan 5404-08-06 is a high-pressure hydraulic straight fitting designed for reliable fluid connections. It features 1/2" MNPT to 3/8" MNPT male NPTF threads, providing a secure and leak-resistant connection. Constructed from durable steel with Cr3 plating, it offers excellent corrosion resistance and long-lasting performance. With a compact design, this fitting is easy to install in tight hydraulic systems. Ideal for industrial, mobile, and high-pressure hydraulic applications requiring precise fluid flow.
Fitting Chart- Straight fitting with 1/2" MNPT x 3/8" MNPT male threads
- Constructed from steel with Cr3 plating for durability and corrosion resistance
- Meets SAE J476 standards for reliable NPTF connections
- Compact design allows easy installation in tight spaces
- Suitable for high-pressure hydraulic systems up to 6000 PSI
- Ensures dependable, leak-resistant fluid routing
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/8-18 |
| Thread B2 Drill In | 0.406 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.7 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.14 |
| Maximum Dynamic Pressure Psi | 6000 |
