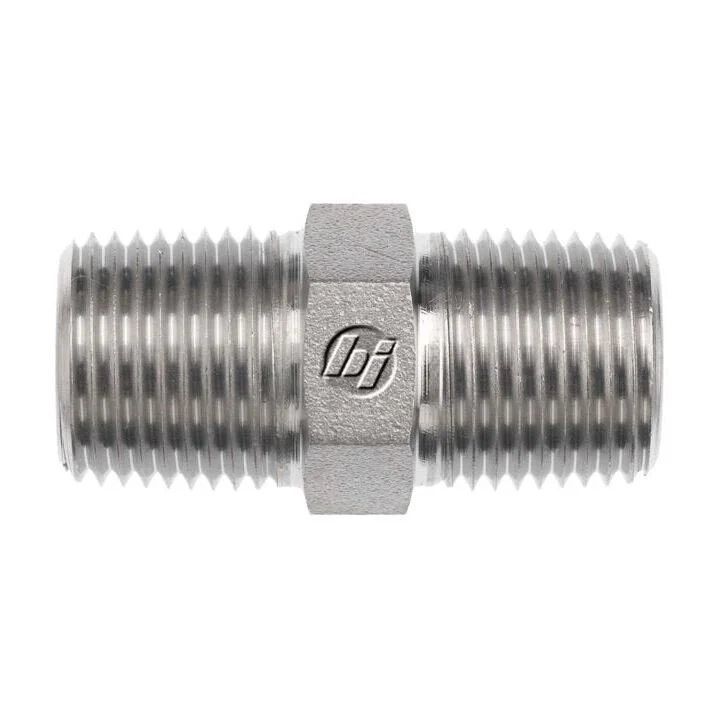

The 1/2" MNPT x 1/2" MNPT Stainless Steel Straight Adapter from Brennan Industries of Texas is engineered for high-pressure and corrosive fluid applications. Featuring 1/2-14 Male NPTF threads on both ends, built to SAE J476 standards, this fitting ensures strong, leak-free sealing in hydraulic and industrial systems. Constructed from premium straight stainless steel, it offers superior corrosion resistance, making it ideal for harsh environments and chemical applications. With a high pressure rating of up to 6000 PSI, this adapter delivers reliable performance in the most demanding setups. Its compact size and 0.875" hex allow easy installation in tight spaces.
Fitting Chart- 1/2" Male NPTF x 1/2" Male NPTF straight stainless steel adapter
- Precision-machined to SAE J476 thread specification
- Corrosion-resistant stainless steel ideal for harsh or chemical environments
- Supports up to 6000 PSI dynamic pressure
- Compact build with 0.875" body hex for easy tightening
- Suitable for hydraulic, pneumatic, chemical, and high-pressure systems
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.89 |
| Shape | Straight |
| Body Material | Stainless Steel |
| Raw Material Type | Straight Stainless Steel |
| Weight Lbs | 0.181 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 1.447 |
