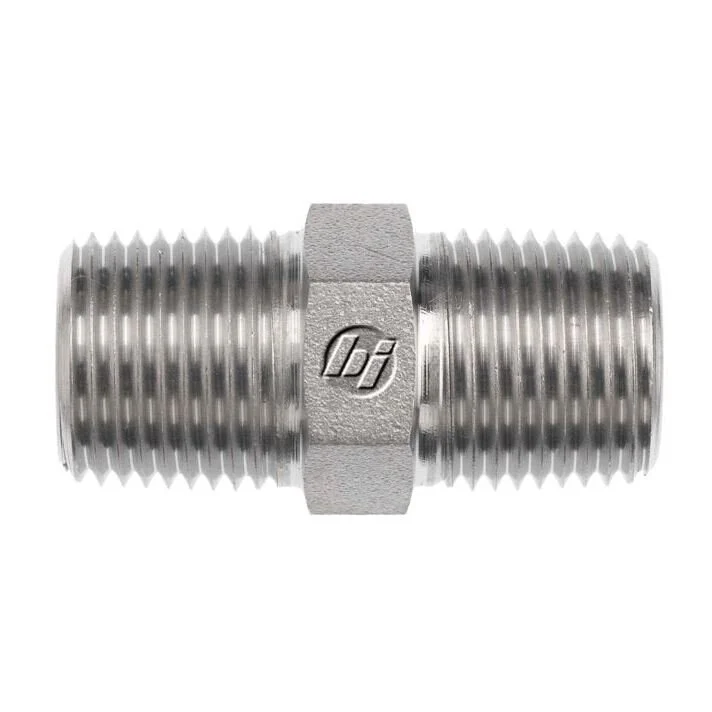

This straight hydraulic fitting features dual 1" MNPT (Male NPTF) threads, providing robust and reliable connections for high-flow hydraulic systems. Constructed from durable steel with a Cr3 plating, it offers excellent longevity and enhanced corrosion resistance in industrial environments. Engineered to handle substantial operational demands, this fitting can withstand a maximum dynamic pressure of 3000 psi. Its functional design, including a 1.375" body hex and 2.34" overall length, ensures efficient integration into various hydraulic setups.
- Dual 1" MNPT threads ensure strong, large-diameter male connections for hydraulic lines
- Heavy-duty steel construction provides superior durability and structural integrity
- Corrosion-resistant Cr3 plating extends the fitting's life in harsh conditions
- 3000 psi dynamic pressure rating is suitable for a wide range of demanding hydraulic applications
- Straight, robust design allows for straightforward and secure system integration
Thread B1 Type | Male NPTF |
Thread B1 Size | 1-11-1/2 |
Thread B1 Drill In | 0.938 |
Thread B1 Specification | SAE J476 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 1-11-1/2 |
Thread B2 Drill In | 0.938 |
Thread B2 Specification | SAE J476 |
Body Hex In | 1.375 |
Overall Length L In | 2.34 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
Weight Lbs | 0.4 |
Maximum Dynamic Pressure Psi | 3000 |
California Residents | Prop-65 Warning |
Cubic in. (L W H) | 4.424 |
