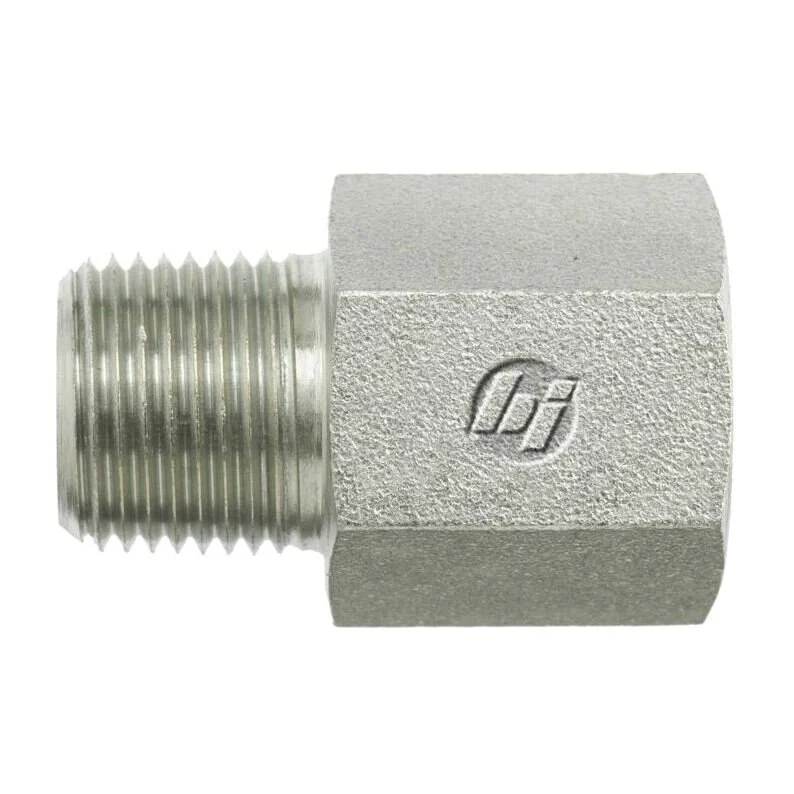

The 1/4" MNPT x 1/2" FNPT Straight Steel Adapter from Brennan Industries of Texas is engineered for high-pressure hydraulic and industrial applications. Featuring precise Male NPTF (1/4-18) to Female NPTF (1/2-14) threads built to SAE J476 standards, this fitting ensures secure, leak-free performance. Crafted from durable straight steel and coated with Cr3 plating, it offers enhanced corrosion resistance and long-term reliability. With a pressure rating up to 5000 PSI, it is ideal for demanding fluid transfer systems. The compact straight design allows easy integration into various hydraulic layouts.
Fitting Chart- 1/4" Male NPTF to 1/2" Female NPTF straight steel adapter
- Built to SAE J476 thread specifications for secure sealing
- Cr3 plating offers excellent corrosion resistance
- High-strength steel construction designed for up to 5000 PSI dynamic pressure
- 1.125" body hex for easy tightening during installation
- Ideal for high-pressure hydraulic, pneumatic, and industrial systems
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.125 |
| Overall Length L In | 1.68 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.24 |
| Maximum Dynamic Pressure Psi | 5000 |
