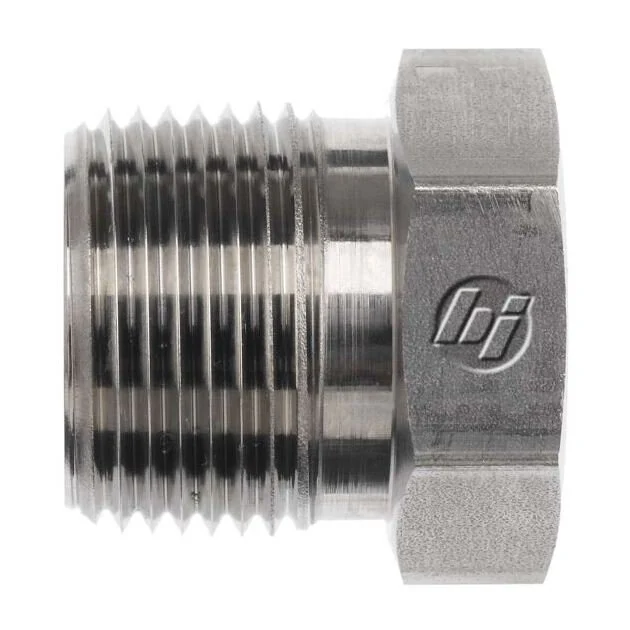

This straight hydraulic reducer bushing is designed to connect components of different sizes, featuring a 3/8" MNPT (Male NPTF) thread on one end and a 1/4" FNPT (Female NPTF) thread on the other. Manufactured from durable steel with a protective Cr3 plating, it ensures excellent longevity and superior corrosion resistance in hydraulic systems. Engineered for demanding applications, this compact fitting can withstand a maximum dynamic pressure of 6000 psi. Its efficient design, featuring a 0.75" body hex and 0.85" overall length, allows for secure and space-efficient integration.
- Reducer Bushing Design: Connects 3/8" Male NPTF to 1/4" Female NPTF for size reduction
- Durable Steel Construction: Ensures robust performance and extended product life
- Corrosion-Resistant Cr3 Plating: Provides enhanced protection against rust and wear
- High 6000 psi Dynamic Pressure Rating: Suitable for demanding hydraulic applications
- Compact Straight Shape: Facilitates straightforward installation in confined spaces
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 3/8-18 |
| Thread B1 Drill In | 0.406 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 0.85 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.04 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
