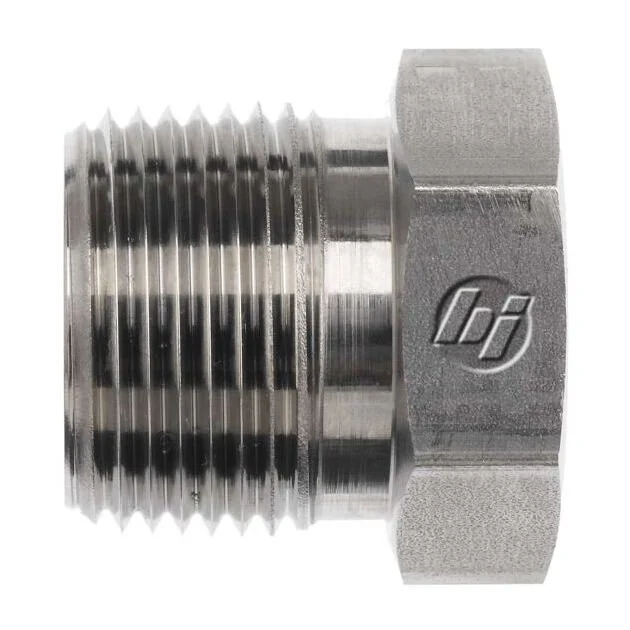

This straight hydraulic fitting serves as a versatile connector, featuring a 1/2" MNPT (Male NPTF) thread on one end and a 1/8" FNPT (Female NPTF) thread on the other, allowing for seamless integration of different thread sizes within hydraulic systems. Constructed from robust steel and finished with Cr3 plating, it delivers exceptional durability and superior resistance to corrosion. Engineered for high-pressure environments, this fitting can withstand a maximum dynamic pressure of 6000 psi. Its efficient design, including a 0.875" body hex and 1.1" overall length, ensures secure and space-efficient installation.
- Mixed NPTF Threads: Features a 1/2" Male NPTF and a 1/8" Female NPTF for versatile connections
- Durable Steel Construction: Ensures robust performance and extended product lifespan
- Corrosion-Resistant Cr3 Plating: Provides enhanced protection against rust and wear
- High 6000 psi Dynamic Pressure Rating: Suitable for demanding high-pressure hydraulic applications
- Compact Straight Design: Facilitates straightforward installation even in confined spaces
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/8-27 |
| Thread B2 Drill In | 0.22 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.1 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.1437 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
