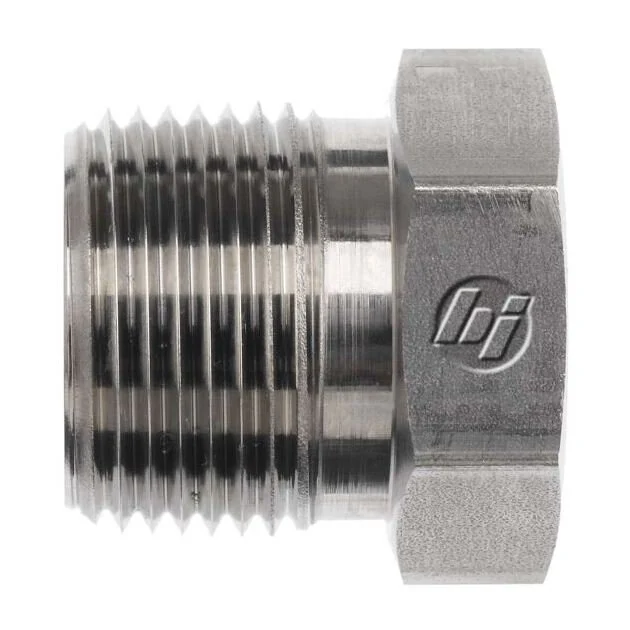

This straight hydraulic fitting acts as a reliable reducer, featuring a 3/4" MNPT (Male NPTF) thread on one end and a 3/8" FNPT (Female NPTF) thread on the other, enabling the connection of different sized components within hydraulic systems. Constructed from robust steel with a protective Cr3 plating, it ensures exceptional durability and superior resistance to corrosion in demanding environments. Engineered for high-pressure applications, this fitting can withstand a maximum dynamic pressure of 5500 psi. Its practical design, including a 1.125" body hex and 1.17" overall length, ensures efficient and secure integration.
- Threaded Reducer: Features a 3/4" Male NPTF and a 3/8" Female NPTF for reducing connections
- Durable Steel Build: Constructed from high-quality steel for lasting performance
- Corrosion-Resistant Plating: Enhanced with Cr3 plating for superior protection against rust
- High 5500 psi Rating: Capable of handling significant dynamic pressure in hydraulic systems
- Compact Straight Form: Ideal for installations requiring a space-efficient, in-line adapter
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 3/4-14 |
| Thread B1 Drill In | 0.719 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 3/8-18 |
| Thread B2 Drill In | 0.406 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.125 |
| Overall Length L In | 1.17 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| Weight Lbs | 0.21 |
| Maximum Dynamic Pressure Psi | 5500 |
| California Residents | Prop-65 Warning |
