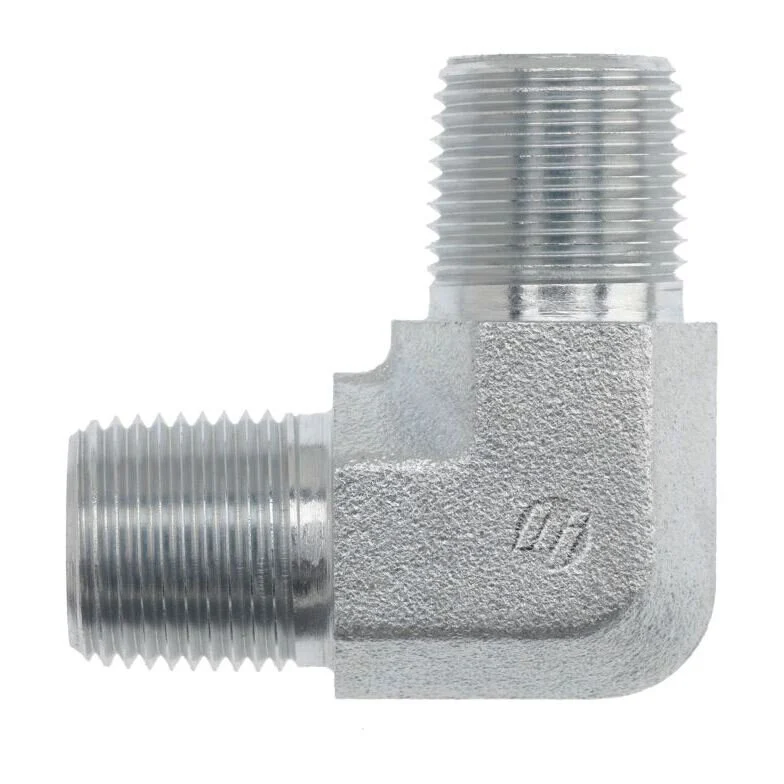

This 90-degree elbow hydraulic fitting is designed for efficient directional changes in hydraulic lines. It features dual 1/4" MNPT (Male NPTF) threads, providing secure and reliable connections for fluid transfer. Forged from robust steel and protected by Cr3 plating, this fitting ensures exceptional durability and superior resistance to corrosion in demanding environments. Capable of withstanding a maximum dynamic pressure of 6000 psi, it's suitable for high-pressure applications. Its angled shape and compact design, with a 0.562" body hex and 1.09" centerline length, allow for versatile routing and space optimization.
- 90-Degree Elbow Shape: Enables efficient redirection of hydraulic lines
- Dual 1/4" MNPT Threads: Provides consistent male connections for both ends
- Forged Steel Construction: Offers superior strength and resilience under pressure
- High 6000 psi Rating: Ensures reliable performance in demanding hydraulic systems
- Corrosion-Resistant Cr3 Plating: Enhances durability and protects against environmental degradation
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.562 |
| Overall Length L In | 1.09 |
| Centerline Length M In | 1.09 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.098 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 1.056 |
