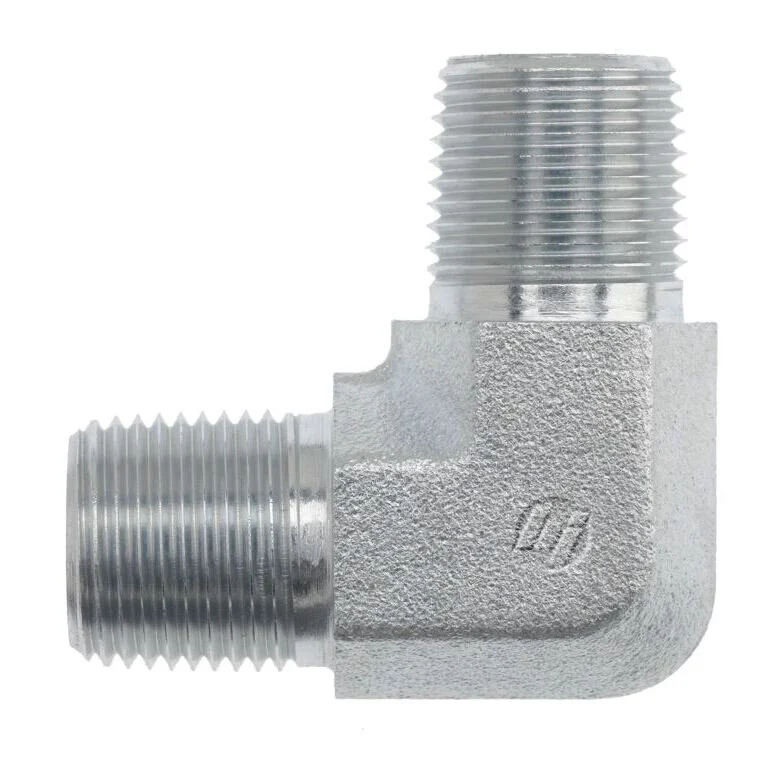

This 90-degree elbow hydraulic fitting is engineered for efficient and reliable directional changes in hydraulic lines. It features dual 1/2" MNPT (Male NPTF) threads, ensuring secure connections for fluid transfer within your system. Forged from robust steel and protected by Cr3 plating, this fitting delivers exceptional durability and superior resistance to corrosion in demanding operational environments. Capable of withstanding a maximum dynamic pressure of 6000 psi, it's well-suited for high-pressure applications. Its angled design and practical dimensions, including a 0.875" body hex and 1.47" centerline length, allow for versatile routing and optimized space utilization.
- 90-Degree Elbow Shape: Enables efficient redirection of hydraulic fluid paths
- Dual 1/2" MNPT Threads: Provides consistent male connections for both ends of the fitting
- Forged Steel Construction: Offers superior strength and resilience for demanding use
- High 6000 psi Rating: Ensures reliable performance in high-pressure hydraulic systems
- Corrosion-Resistant Cr3 Plating: Enhances durability and protects against environmental degradation
Thread B1 Type | Male NPTF |
Thread B1 Size | 1/2-14 |
Thread B1 Drill In | 0.531 |
Thread B1 Specification | SAE J476 |
Thread B2 Type | Male NPTF |
Thread B2 Size | 1/2-14 |
Thread B2 Drill In | 0.531 |
Thread B2 Specification | SAE J476 |
Body Hex In | 0.875 |
Overall Length L In | 1.47 |
Centerline Length M In | 1.47 |
Shape | 90 Degree |
Body Material | Steel |
Raw Material Type | Steel Forging |
Plating | Cr3 |
Weight Lbs | 0.268 |
Maximum Dynamic Pressure Psi | 6000 |
California Residents | Prop-65 Warning |
Cubic in. (L × W × H) | 3.184 |
