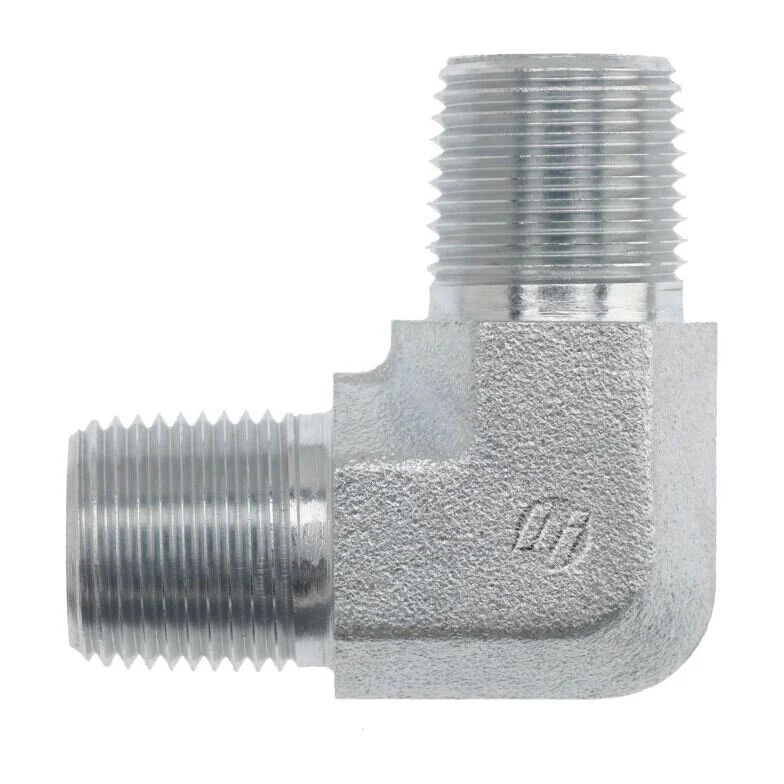

This 90-degree elbow hydraulic fitting is expertly crafted for efficient and reliable directional changes in hydraulic lines. It features dual 3/4" MNPT (Male NPTF) threads, ensuring secure and consistent connections for fluid transfer in various systems. Forged from robust steel and protected by Cr3 plating, this fitting delivers exceptional durability and superior resistance to corrosion in demanding operational environments. Capable of withstanding a maximum dynamic pressure of 5500 psi, it is well-suited for high-pressure applications. Its angled design and practical dimensions, including a 1.062" body hex and 1.59" centerline length, allow for versatile routing and optimized space utilization.
- 90-Degree Angle: Facilitates convenient changes in hydraulic line direction
- Dual 3/4" MNPT Connections: Provides consistent male NPTF threads for both ends
- Forged Steel Construction: Ensures robust strength and extended product lifespan
- 5500 psi Pressure Rating: Designed for reliable performance in high-pressure systems
- Cr3 Plating: Offers enhanced corrosion resistance for durable outdoor or harsh environment use
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 3/4-14 |
| Thread B1 Drill In | 0.719 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/4-14 |
| Thread B2 Drill In | 0.719 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1.062 |
| Overall Length L In | 1.59 |
| Centerline Length M In | 1.59 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.406 |
| Maximum Dynamic Pressure Psi | 5500 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 4.778 |
