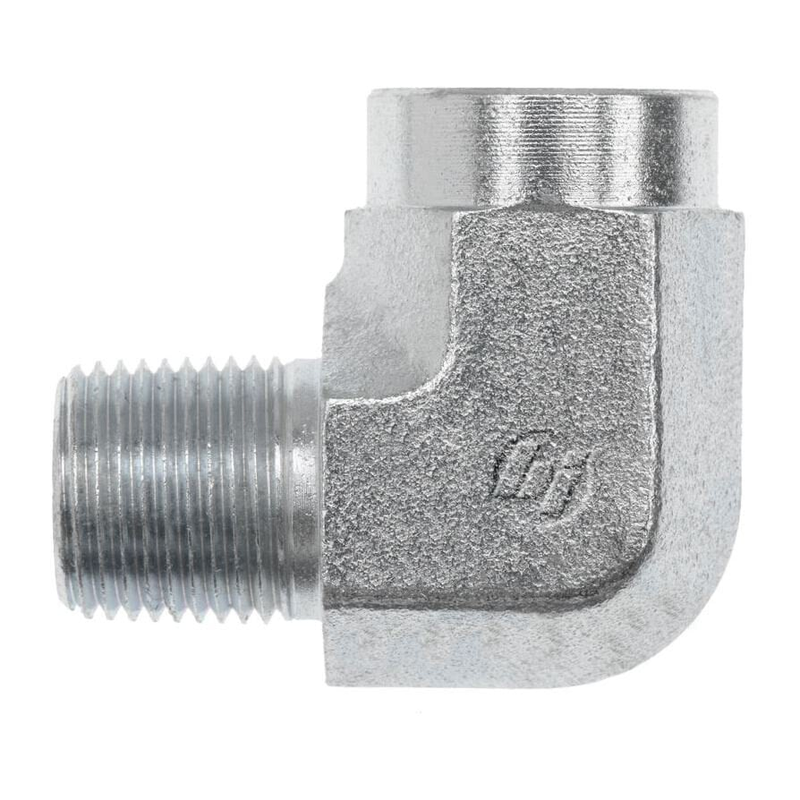

This 90-degree elbow hydraulic fitting is designed for efficient directional changes and versatile connections in hydraulic lines. It uniquely features a 1/4" MNPT (Male NPTF) thread on one end and a 1/4" FNPT (Female NPTF) thread on the other, allowing for direct connection between male and female components at an angle. Forged from robust steel and protected by Cr3 plating, this fitting ensures exceptional durability and superior resistance to corrosion in demanding environments. Capable of withstanding a maximum dynamic pressure of 6000 psi, it's well-suited for high-pressure applications. Its angled shape and compact design, with a 0.75" body hex and 1.09" centerline length, allow for versatile routing and optimized space utilization.
- Mixed Thread Configuration: Features both 1/4" Male NPTF and 1/4" Female NPTF for flexible connections
- 90-Degree Elbow: Facilitates efficient changes in hydraulic line direction
- Forged Steel Construction: Ensures superior strength and resilience for demanding use
- High 6000 psi Rating: Guarantees reliable performance in high-pressure hydraulic systems
- Corrosion-Resistant Cr3 Plating: Enhances durability and protects against environmental degradation
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 0.88 |
| Centerline Length M In | 1.09 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.148 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 1.379 |
