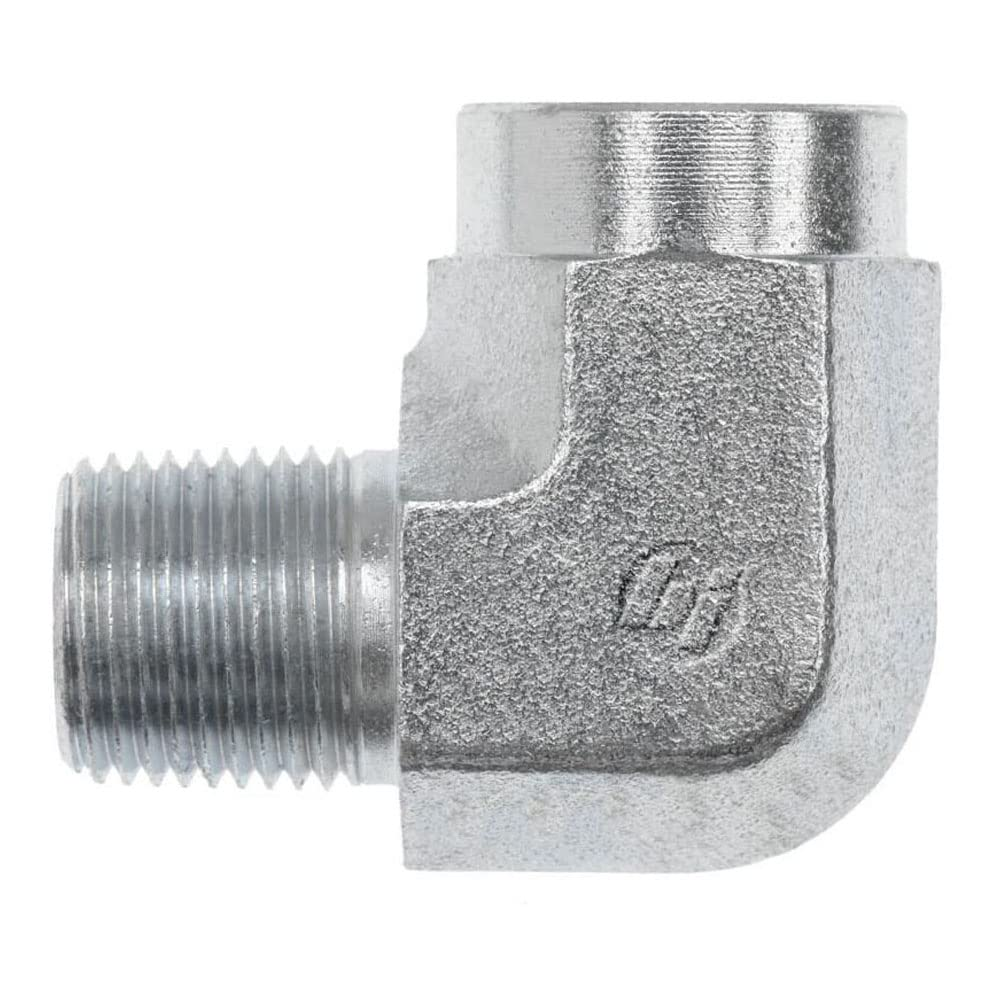

The Brennan 5502-08-08 is a compact, high-pressure 90° street elbow designed for hydraulic and pneumatic systems. It connects a 1/2" male NPTF port to a 1/2" female NPTF port, enabling change of direction in fluid or gas lines. Built from forged steel (or stainless steel in variant), this elbow is rugged and suitable for demanding industrial applications. It is designed under the 5502 series and conforms to established industry standards for pressure fittings. Its robust build and standard NPTF threading make it reliable for leak-tight connections under pressure. Because of its compact elbow shape, it is especially useful for installations where space or alignment constraints exist.
Fitting Chart- 1/2" Male NPTF x 1/2" Female NPTF connection - standard size for common hydraulic systems.
- 90° street-elbow design - enables directional change in piping or hose runs while saving space.
- Forged-steel construction - high strength and durability under hydraulic pressure.
- NPTF (dry-seal) threads - provide reliable, leak-resistant sealing when assembled correctly.
- Compact dimensions - convenient for installations where space is constrained.
- Suitable for high-pressure hydraulic and pneumatic applications.
| Thread A Type | Male NPTF |
| Thread A Size | 1/2-14 NPTF |
| Thread B Type | Female NPTF |
| Thread B Size | 1/2-14 NPTF |
| Connection Configuration | 90° Elbow (MNPTF x FNPTF) |
| Material | Forged Steel (5502-FG version) |
| Series | 5502 |
| Maximum Operating Pressure | 5000 PSI |
| Overall Length | Approx. 1.47 in |
| Overall Diameter | 1/2 in (main port size) |
| Use Case | Hydraulic / Pneumatic / High-Pressure Systems requiring 90° direction change |
