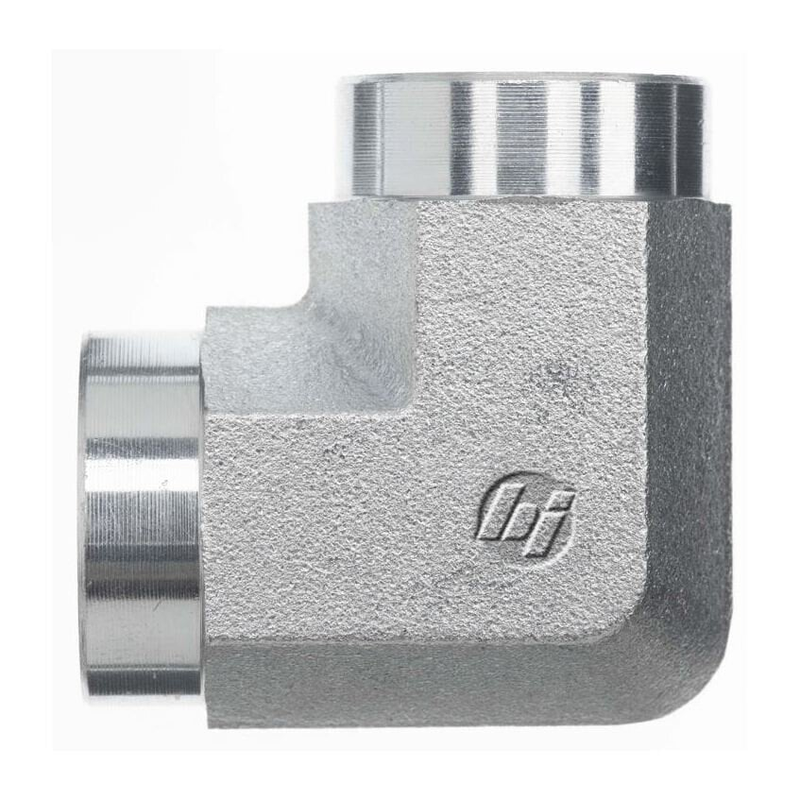

This 90-degree elbow hydraulic fitting is engineered for efficient directional changes in hydraulic lines. It features dual 1/4" FNPT (Female NPTF) threads, providing secure and reliable connections for fluid transfer between male-threaded components at an angle. Forged from robust steel and protected by Cr3 plating, this fitting ensures exceptional durability and superior resistance to corrosion in demanding environments. Capable of withstanding a maximum dynamic pressure of 6000 psi, it's well-suited for high-pressure applications. Its angled design and practical dimensions, including a 0.75" body hex and 0.88" centerline length, allow for versatile routing and optimized space utilization.
- 90-Degree Elbow Shape: Facilitates convenient changes in hydraulic line direction for female connections
- Dual 1/4" FNPT Threads: Provides consistent female NPTF connections on both ends
- Forged Steel Construction: Ensures superior strength and resilience for demanding use
- High 6000 psi Rating: Guarantees reliable performance in high-pressure hydraulic systems
- Corrosion-Resistant Cr3 Plating: Enhances durability and protects against environmental degradation
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 0.88 |
| Centerline Length M In | 0.88 |
| Shape | 90 Degree |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.1625 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 1.181 |
