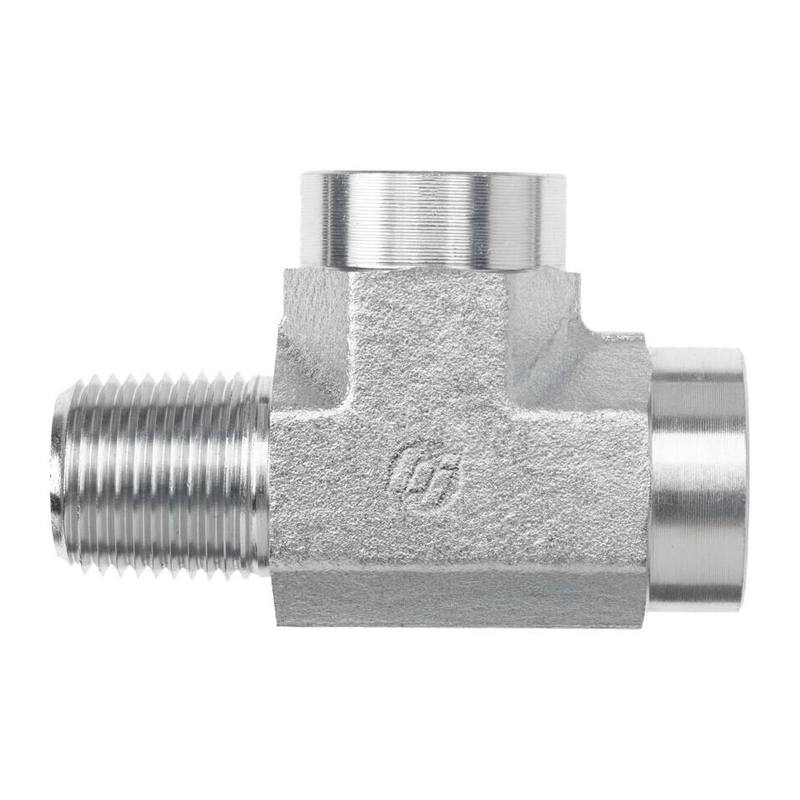

The Brennan 5602-04-04-04-FG Tee fitting provides a reliable solution for branching hydraulic lines in high-pressure systems. Featuring a 1/4" MNPT male connection and two 1/4" FNPT female outlets, it ensures secure and leak-proof fluid distribution. Forged from high-strength steel with Cr3 plating, this tee delivers superior durability and corrosion resistance. Designed to meet SAE J476 standards, it is ideal for industrial, mobile, and fluid power applications. Compact in size, it allows efficient routing of hydraulic lines in tight spaces.
Fitting Chart- Tee configuration: 1/4" MNPT x 1/4" FNPT x 1/4" FNPT
- Forged steel construction for maximum strength and durability
- Cr3 plating provides corrosion resistance
- Meets SAE J476 standards for reliable performance
- Compact size for use in tight hydraulic assemblies
- Suitable for high-pressure hydraulic, industrial, and mobile systems
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Thread 3 Type | Female NPTF |
| Thread 3 Size | 1/4-18 |
| Thread 3 Drill In | 0.281 |
| Thread 3 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 0.88 |
| Centerline Length M In | 1.09 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.185 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 1.854 |
