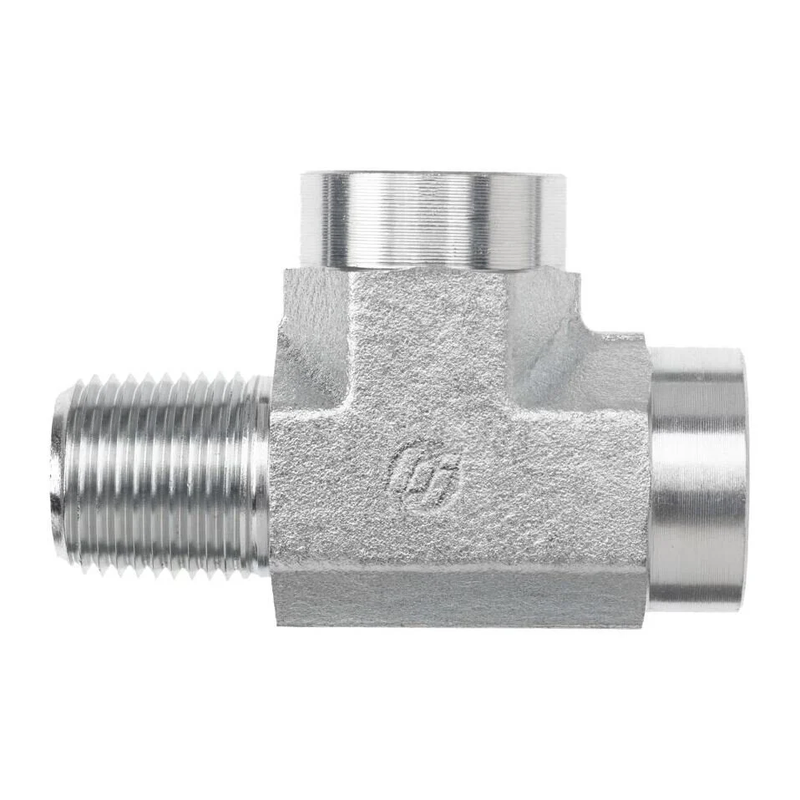

The Brennan 5602-08-08-08-FG is a high-pressure steel forged 1/2" NPTF Tee, designed for secure splitting or joining of fluid lines in demanding hydraulic applications. Featuring one male NPTF port and two female NPTF ports (all 1/2-14), it ensures precise threading, excellent sealing, and dependable leak-free performance. Built from heavy-duty steel with Cr3 plating, this tee withstands high vibration, corrosion, and pressure up to 5000 PSI. Its compact body design makes it ideal for industrial machinery, hydraulic systems, and maintenance operations.
Fitting Chart- 1/2" MNPTF x (2) 1/2" FNPTF hydraulic tee connector
- Precision-machined to SAE J476 standards for tight, leak-resistant seals
- Strong steel forging construction for high durability under pressure
- Rated for up to 5000 PSI performance
- Corrosion-resistant Cr3 plated finish
- Ideal for hydraulic equipment, industrial fluid control, and line branching
| Specification | Details |
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/2-14 |
| Thread B1 Drill In | 0.531 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Thread 3 Type | Female NPTF |
| Thread 3 Size | 1/2-14 |
| Thread 3 Drill In | 0.531 |
| Thread 3 Specification | SAE J476 |
| Body Hex In | 1.062 |
| Overall Length L In | 1.23 |
| Centerline Length M In | 1.47 |
| Centerline Length M2 In | 1.23 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.53 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 5.049 |
