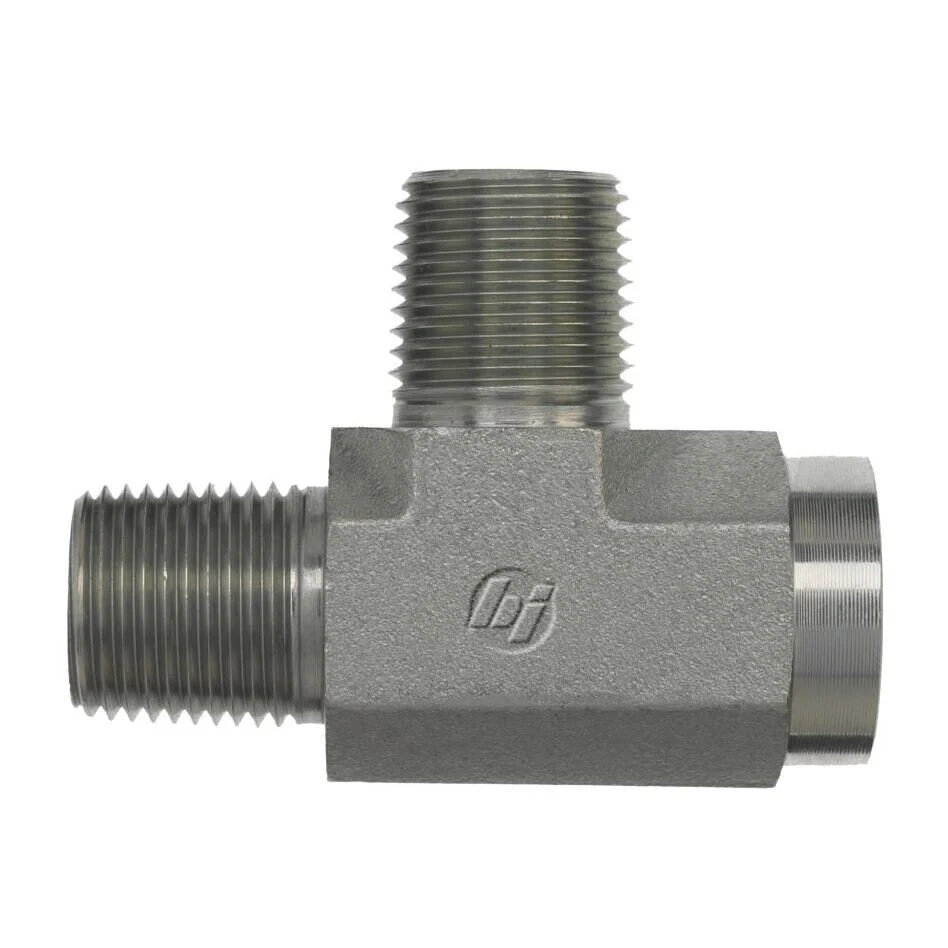

The Brennan 5603-04-04-04-FG is a durable 1/4" MNPT x 1/4" FNPT x 1/4" MNPT steel tee fitting, engineered for high-pressure hydraulic and industrial applications. Designed with SAE J476 NPTF threads, it ensures a secure, leak-proof connection for fluid and air systems. Its tee configuration allows seamless branching within hydraulic lines, making it ideal for system expansions or multi-line routing. Made from high-strength steel forging and finished with Cr3 plating, this tee delivers reliable corrosion protection and long service life. Suitable for heavy equipment, machinery, and high-pressure fluid systems.
Fitting Chart- 1/4" MNPT x 1/4" FNPT x 1/4" MNPT tee fitting for branching fluid lines
- Constructed from high-strength steel forging for robust performance
- SAE J476 NPTF threads ensure precise and leak-free connections
- Cr3 plated for enhanced corrosion and wear resistance
- Ideal for high-pressure hydraulic, pneumatic, and industrial systems
- Compact design supports efficient line routing in tight spaces
| Thread B1 Type | Male NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Thread 3 Type | Male NPTF |
| Thread 3 Size | 1/4-18 |
| Thread 3 Drill In | 0.281 |
| Thread 3 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.09 |
| Centerline Length M In | 1.09 |
| Centerline Length M2 In | 0.88 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.197 |
| California Residents | Prop-65 Warning |
