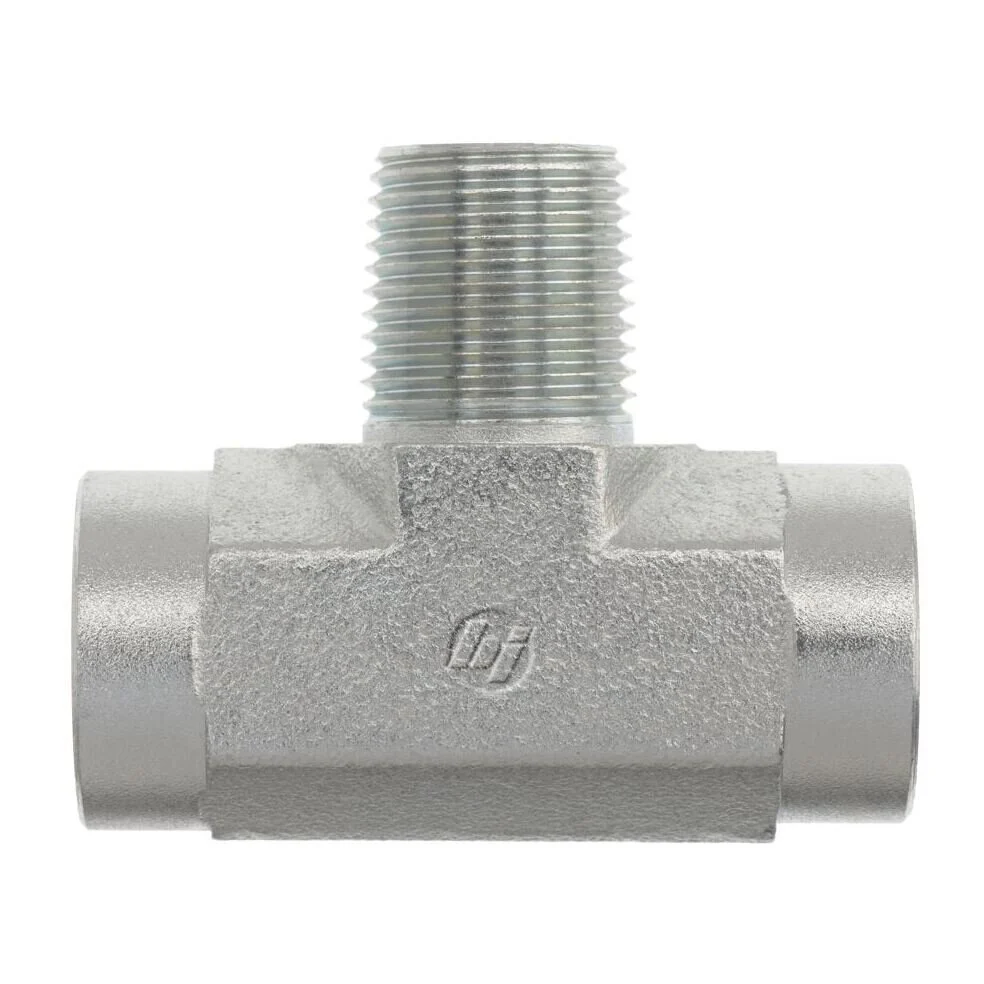

The Brennan 5604-04-04-04 is a high-pressure hydraulic branch tee designed with two 1/4" Female NPTF ports and one 1/4" Male NPTF port. Built under the 5604 series, it delivers a secure, leak-free connection for fluid and gas systems operating up to 6000 PSI. Manufactured in forged steel or stainless steel variants, this fitting provides excellent durability and reliable performance in demanding hydraulic, pneumatic, and industrial applications. Its compact body design ensures easy installation in tight or complex system layouts.
Fitting Chart- Two 1/4" FNPTF ports and one 1/4" MNPTF port for branch-style fluid routing.
- High-pressure rating up to 6000 PSI for demanding hydraulic systems.
- Available in Forged Steel (FG) and Stainless Steel (SS) variants.
- NPTF (Dryseal) threads ensure tight, leak-resistant connections.
- Compact body ideal for tight-space installations.
- Designed for hydraulic, pneumatic, and general high-pressure applications.
| Thread A Type | Female NPTF |
| Thread A Size | 1/4-18 |
| Thread B Type | Female NPTF |
| Thread B Size | 1/4-18 |
| Thread C Type | Male NPTF |
| Thread C Size | 1/4-18 |
| Pressure Rating | 6000 PSI |
| Material | Forged Steel / Stainless Steel (variant specific) |
| Series | 5604 (FP x FP x MP Branch Tee) |
| Overall Length LGTH | 1.090 in (27.69 mm) |
| Secondary Length Dimension | 0.880 in (22.35 mm) |
| Shape | Branch Tee (FNPTF x FNPTF x MNPTF) |
| Application | High-pressure hydraulic & pneumatic systems |
