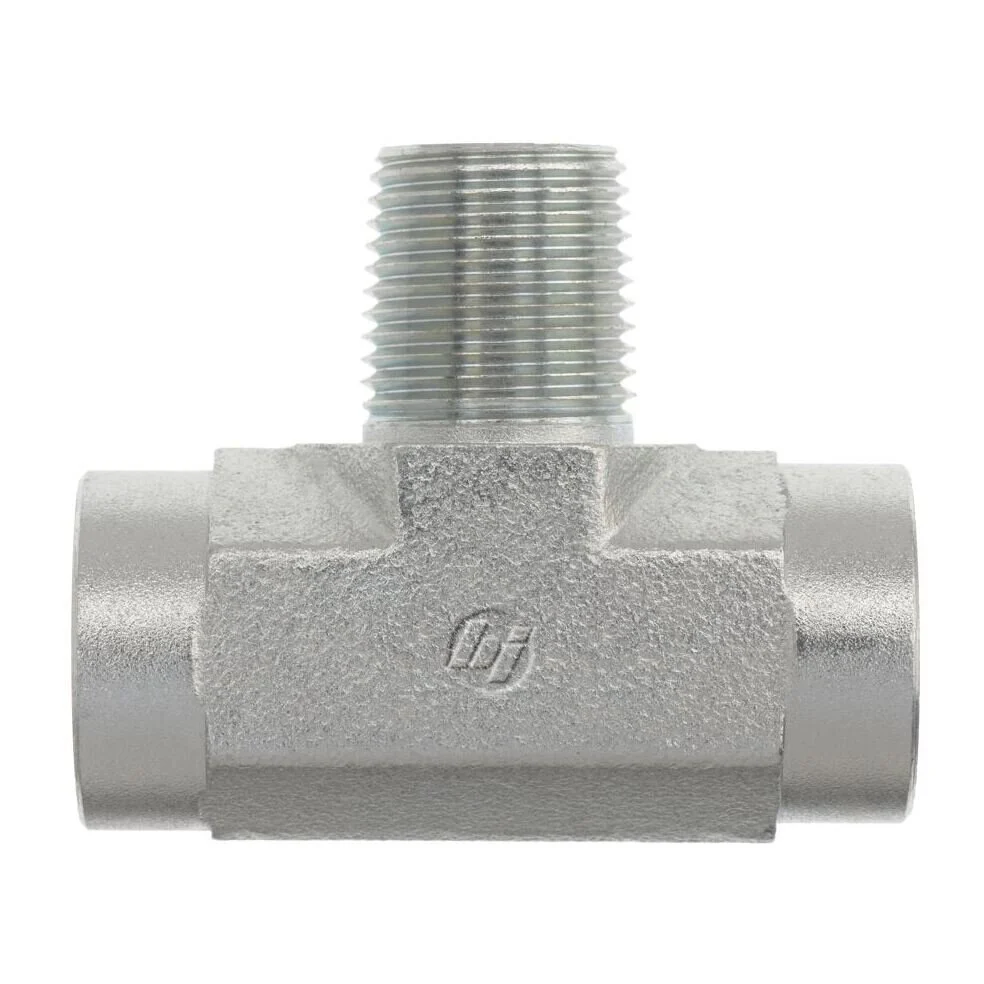

The Brennan 5604-04-04-04-FG is a precision-engineered 1/4" FNPT x 1/4" FNPT x 1/4" MNPT steel tee fitting designed for high-pressure hydraulic applications. Crafted from steel forging with Cr3 plating, it offers exceptional durability and resistance to corrosion. Its tee configuration allows efficient branching in hydraulic, pneumatic, or industrial fluid systems. Featuring SAE J476 NPTF threads, it ensures a tight, leak-proof connection for reliable performance. Perfect for system expansions, multi-line routing, and heavy-duty machinery.
Fitting Chart- 1/4" FNPT x 1/4" FNPT x 1/4" MNPT tee for fluid line branching
- Made from high-strength steel forging for maximum durability
- SAE J476 NPTF threads provide secure and leak-free connections
- Cr3 plated for excellent corrosion and wear resistance
- Suitable for hydraulic, pneumatic, and industrial systems
- Compact design allows installation in tight spaces
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Thread 3 Type | Male NPTF |
| Thread 3 Size | 1/4-18 |
| Thread 3 Drill In | 0.281 |
| Thread 3 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.09 |
| Centerline Length M In | 0.88 |
| Centerline Length M2 In | 0.88 |
| Shape | Tee |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.1937 |
