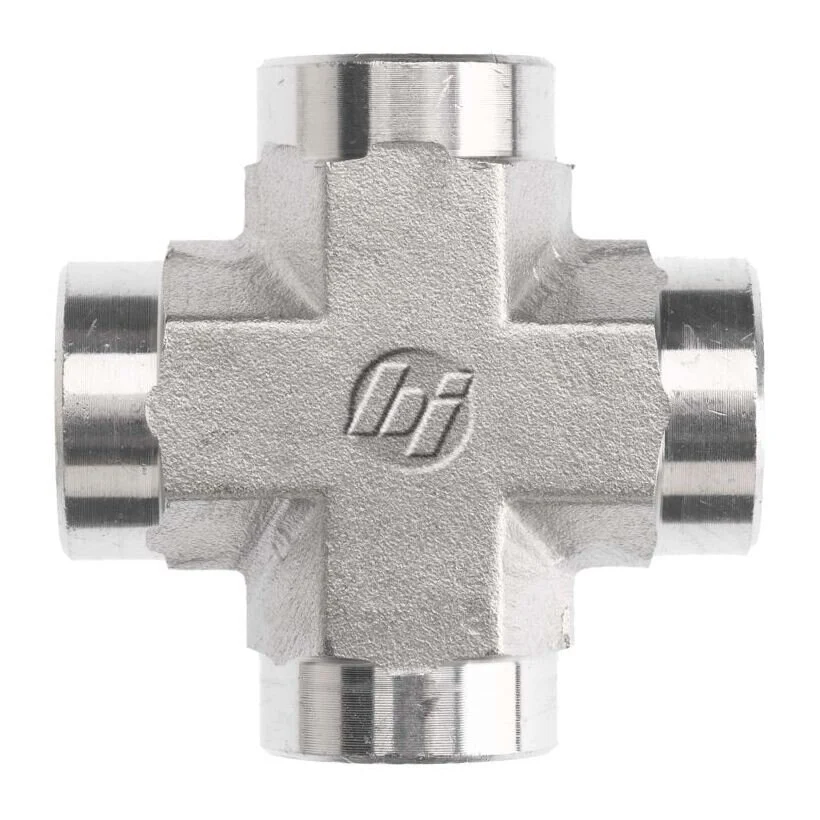

The Brennan 5652-04-04-04-04-FG is a 1/4" FNPT cross fitting engineered for high-pressure hydraulic systems. Made from steel forging with Cr3 plating, it ensures strength, durability, and corrosion resistance. The cross configuration allows fluid to flow in four directions, making it ideal for complex piping setups. Designed with SAE J476 NPTF threads, it provides reliable, leak-free connections. Perfect for industrial, pneumatic, and hydraulic applications requiring compact yet efficient fluid routing.
Fitting Chart- 1/4" FNPT cross for multi-directional fluid flow
- Made from high-strength steel forging for durability
- SAE J476 NPTF threads ensure secure, leak-proof connections
- Cr3 plated for excellent corrosion and wear resistance
- Suitable for hydraulic, pneumatic, and industrial systems
- Compact design allows easy integration into tight piping setups
| Thread B1 Type | Female NPTF |
| Thread B1 Size | 1/4-18 |
| Thread B1 Drill In | 0.281 |
| Thread B1 Specification | SAE J476 |
| Thread B2 Type | Female NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Thread 3 Type | Female NPTF |
| Thread 3 Size | 1/4-18 |
| Thread 3 Drill In | 0.281 |
| Thread 3 Specification | SAE J476 |
| Thread 4 Type | Female NPTF |
| Thread 4 Size | 1/4-18 |
| Thread 4 Drill In | 0.281 |
| Thread 4 Specification | SAE J476 |
| Body Hex In | 0.75 |
| Overall Length L In | 1.76 |
| Overall Length L2 In | 1.76 |
| Centerline Length M In | 0.88 |
| Centerline Length M2 In | 0.88 |
| Centerline Length M3 In | 0.88 |
| Centerline Length M4 In | 0.88 |
| Shape | Cross |
| Body Material | Steel |
| Raw Material Type | Steel Forging |
| Plating | Cr3 |
| Weight Lbs | 0.2375 |
