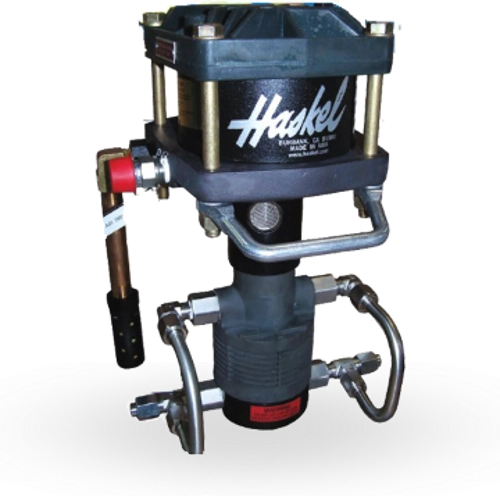

The Haskel 59015 Refrigerant Recovery Pump is a rugged, air-actuated diaphragm pump engineered for refrigerant transfer and recovery without relying on electrical power. It delivers smooth performance across liquid and vapor phases, pulling vacuum to ~27"?Hg and generating up to 1,200?psi discharge pressure. The pump's compact, air-powered design eliminates internal lubrication, preserving refrigerant purity. Lightweight yet durable, it's ideal for HVAC technicians, environmental compliance, and general-purpose refrigerant handling.
- Operates via compressed air no electricity or heat generation
- Pumps both liquid and vapor refrigerants effectively
- Builds pressure up to 1,200 psi
- Generates vacuum down to ~27" Hg for deep system recovery
- Maintains refrigerant purity no internal oil or lubricants
- Lightweight and portable, weighing approximately 13 lb (6 kg)
| Part Number | 59015 |
| Type | Air-actuated refrigerant recovery pump |
| Max Pressure | Up to 1,200 psi |
| Vacuum Capability | Down to ~27" Hg |
| Drive Source | Compressed air (no electrical components) |
| Weight | Approx. 13 lb (6 kg) (portable size) |
| Pump Displacement | 8.9 in per cycle (4 2.5" air-drive bore stroke) |
| Applications | HVAC refrigerant recovery, liquid/vapor pumping, environmental control |
