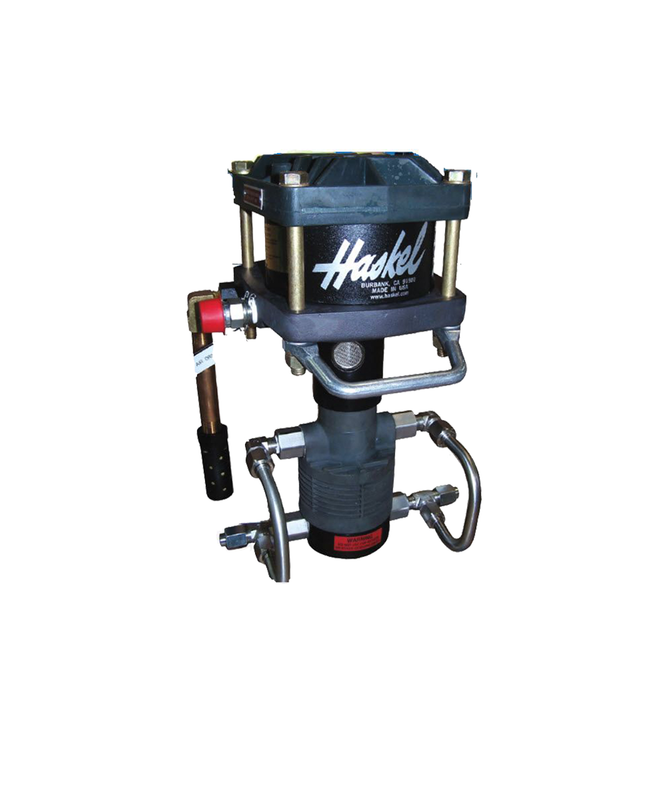

The Haskel 59025 Refrigerant Recovery Pump is a robust air-actuated system designed for transferring refrigerants. It efficiently handles both liquid and vapor phases, achieves vacuum levels down to roughly 27"?Hg, and supports pressures up to 1,200?psi. Fully pneumatic without internal lubrication, it maintains refrigerant purity and operates cool. Its compact, portable design makes it perfectly suited for HVAC fieldwork, refrigerant reclamation, and environmental compliance tasks.
- Operates solely on compressed air no electricity or heat generation
- Transfers both liquid and vapor refrigerants
- Creates vacuum down to 27" Hg
- Delivers pressures up to 1,200 psi
- No internal oil keeps refrigerants uncontaminated
- Lightweight and portable (~25 lb)
| Part Number | 59025 |
| Pump Type | Air-actuated refrigerant recovery pump |
| Max Pressure | Up to 1,200 psi |
| Vacuum Capability | Down to ~27" Hg |
| Air Drive Bore Stroke | 5" 2" |
| Displacement per Cycle | 10 in |
| Seals | Neoprene & PTFE for pump; Buna for drive |
| Wetted Materials | Aluminum and stainless steel |
| Connections | 3/8" FNPT inlet/outlet; vent port 1/8" FNPT |
