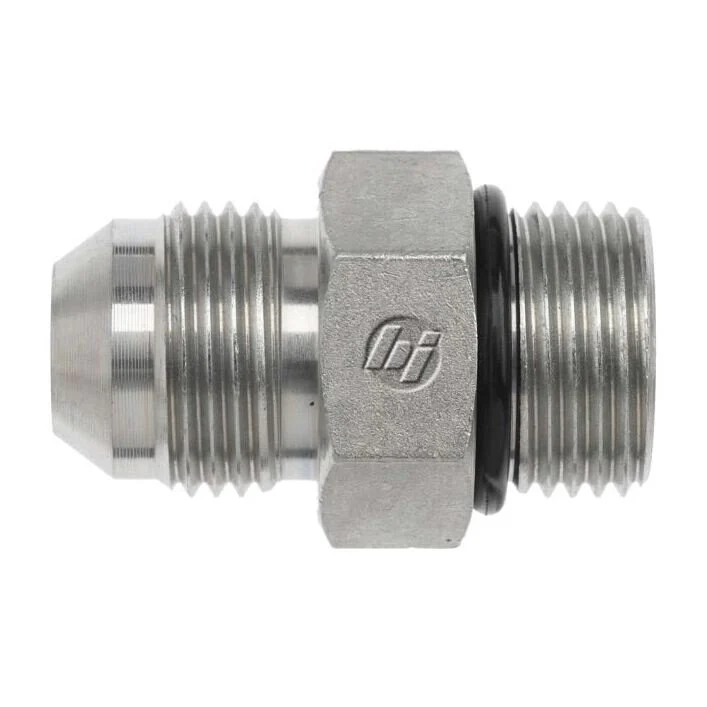

This straight hydraulic fitting is designed for adapting between different hydraulic connection standards. It features a #4 Male JIC (SAE 37-degree flare) thread on one end and a #6 Male SAE O-Ring Boss (MORB) thread on the other, ensuring secure and leak-free transitions. Constructed from durable steel and protected by Cr3 plating, it offers excellent longevity and superior corrosion resistance, even in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 6000 psi. Its compact design, with a 0.688" body hex and 1.29" overall length, allows for efficient system integration.
Fitting Chart- Mixed Thread Sizes: Connects #4 Male JIC to #6 Male SAE O-Ring Boss for hydraulic adaptation
- Durable Steel Construction: Ensures robust performance and extended product lifespan
- Corrosion-Resistant Cr3 Plating: Provides enhanced protection against rust and wear
- Integrated NBR O-Ring: Guarantees a reliable, leak-proof seal for system integrity
- High 6000 psi Pressure Rating: Suitable for demanding high-pressure hydraulic applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/16-20 |
| Thread B1 Drill In | 0.172 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.688 |
| Overall Length L In | 1.29 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.0659 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L �� W �� H) | 0.611 |
