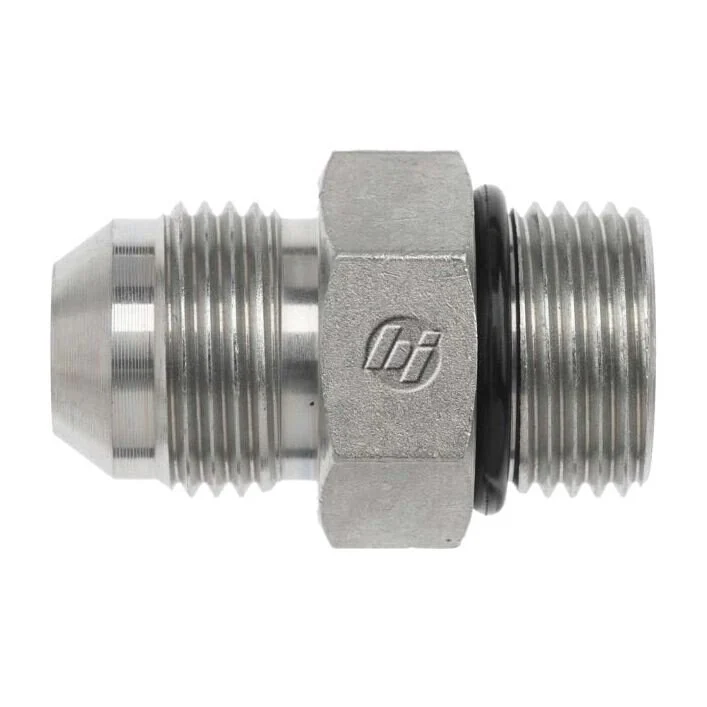

This straight hydraulic fitting is designed for seamless and secure connections within hydraulic systems, featuring a #6 Male JIC (SAE 37-degree flare) thread on one end and a corresponding #6 Male SAE O-Ring Boss (MORB) thread on the other. Manufactured from robust steel and protected by Cr3 plating, it ensures exceptional durability and superior resistance to corrosion in various operating environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 6000 psi. Its efficient design, with a 0.688" body hex and 1.3" overall length, allows for straightforward and space-conscious integration into your system.
- Dual #6 Connections: Features both #6 Male JIC and #6 Male O-Ring Boss threads for specific compatibility
- Durable Steel Construction: Guarantees robust performance and extended product lifespan
- Corrosion-Resistant Cr3 Plating: Provides enhanced protection against rust and wear in challenging conditions
- Integrated NBR O-Ring Seal: Ensures a highly reliable and leak-proof connection
- High 6000 psi Rating: Suitable for demanding high-pressure hydraulic applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 9/16-18 |
| Thread B2 Drill In | 0.297 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 0.688 |
| Overall Length L In | 1.3 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.0674 |
| Maximum Dynamic Pressure Psi | 6000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 0.615 |
