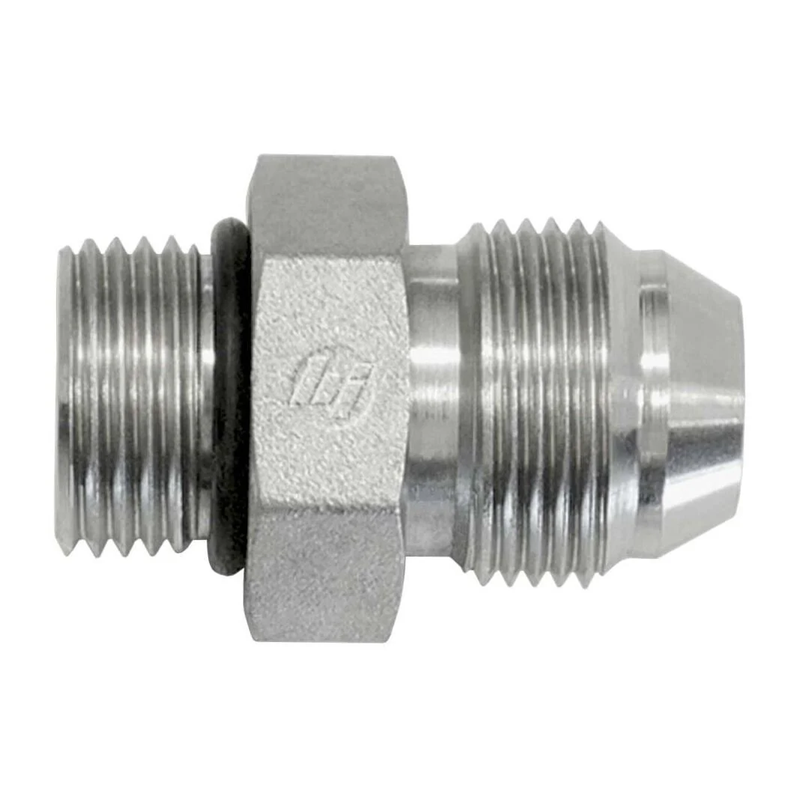

Brennan Industries 6400-06-08-O is a straight hydraulic adapter fit for high pressure and fluid transfer systems. The robust fitting, with a male JIC 37 deg flare connection on one end and a male O-Ring Boss (ORB) connection on the other, is a great option when you require a reliable leak proof connection between dissimilar hydraulic ports. The durable fitting is made from high-strength steel which is built to absorb the impact and vibration that occurs within impulse systems, while still transferring fluid in both vacuum and pressure systems.
- Straight Adapter: Connects two different male threads?JIC 37° Flare to ORB.
- Durable Construction: Made from high-quality steel for strength and reliability.
- Leak-Free Seal: O-Ring Boss ensures a secure and tight connection.
- High Pressure Handling: Withstands up to 6000 psi.
- Universal Fit: Interchangeable and compatible with most hydraulic systems.
- Easy Installation: No special tools required.
- Corrosion Resistant: Steel body supports long-term performance in demanding environments.
- SAE Compliant: Meets SAE J514 and MS 51525 standards.
| Specification | Details |
| Adapter Type | Straight Adapter |
| Connection Type 1 | Male O-Ring Boss |
| Connection Size 1 | 1/2 in (SAE 3/4?–16) |
| Connection Type 2 | Male JIC 37° Flare |
| Connection Size 2 | 3/8 in (SAE 9/16–18) |
| Thread Standards | SAE J514, MS 51525 |
| Material | Steel |
| Pressure Rating | 6000 PSI |
| Overall Length | 1-3/8 in |
| Width | 0.75 in |
| Height | 1.5 in |
| Weight | 0.13 lbs |
| Fitting Style | Male-to-Male |
| Seal Type | O-Ring for Leak-Free Sealing |
