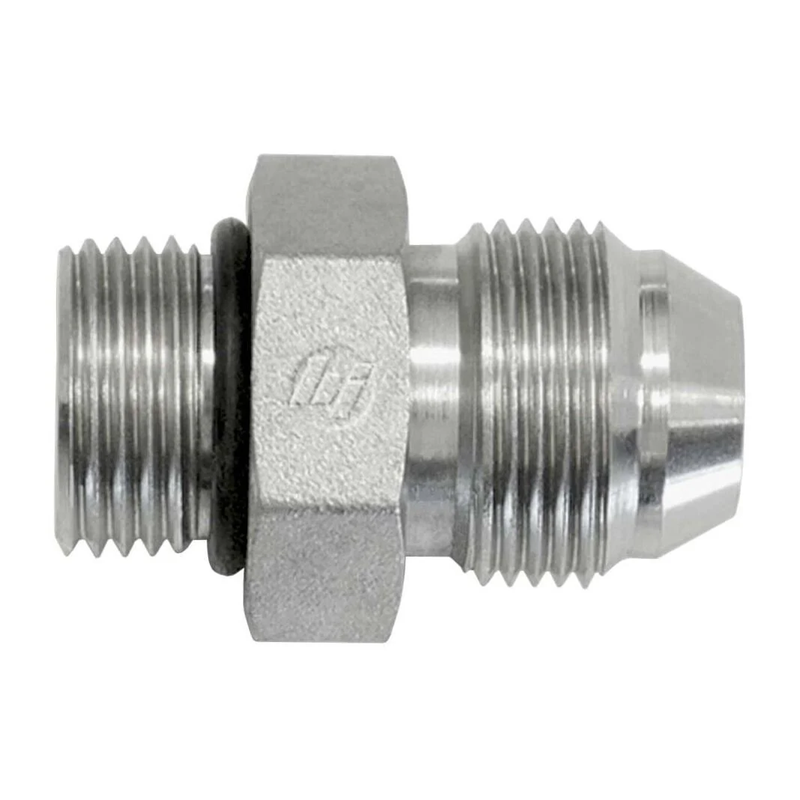

This 08MJ-08MORB straight adapter connects a 3/4-16 male JIC 37° flare to a 3/4-16 male SAE O-Ring Boss. Made from high-strength straight steel with CR3 plating, it ensures durability and corrosion resistance. The fitting includes an NBR O-ring for secure sealing and meets SAE J514 specifications. With a compact design (1.480 length) and pressure rating up to 6,000 PSI, it's ideal for high-performance hydraulic applications. CAD drawings are available for easy integration.
- Connects 3/4-16 Male JIC (37° Flare) to 3/4-16 Male SAE O-Ring Boss
- Made from durable straight steel with corrosion-resistant CR3 plating
- Includes NBR O-ring for reliable sealing
- Meets SAE J514 specifications
- Supports high pressure up to 6,000 PSI
- Compact design with 1.480" overall length and 0.875" hex size
| Specification | Details |
| Thread B1 Type | Male JIC SAE 37° Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 3/4-16 |
| Thread B2 Drill In | 0.391 |
| Thread B2 Specification | SAE J514 |
| Body Hex | 0.875 in |
| Overall Length (L) | 1.480 in |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight | 0.1366 lbs |
| Max Dynamic Pressure | 6,000 PSI |
| California Residents | Prop-65 Warning |
| Cubic in. Space (L?W?H) | 1.133 |
