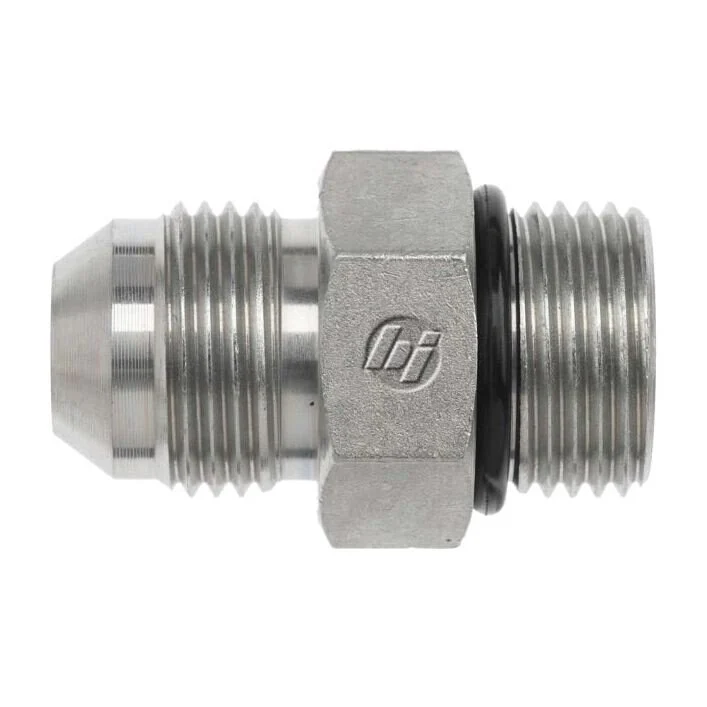

This straight hydraulic fitting is engineered for seamless adaptation between different connection types in hydraulic systems. It features a #8 Male JIC (SAE 37-degree flare) thread on one end and a #10 Male SAE O-Ring Boss (MORB) thread on the other, ensuring secure and leak-free transitions. Constructed from durable steel and protected by Cr3 plating, it offers excellent longevity and superior corrosion resistance, even in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 5000 psi. Its efficient design, with a 1" body hex and 1.6" overall length, allows for straightforward and space-conscious integration.
- Mixed Connection Types: Facilitates connection from #8 Male JIC to #10 Male O-Ring Boss
- Robust Steel Build: Ensures high durability and reliable performance in demanding applications
- Corrosion-Resistant Cr3 Plating: Provides excellent protection against rust and environmental wear
- Integrated NBR O-Ring Seal: Guarantees a secure, leak-proof connection for fluid integrity
- 5000 psi Dynamic Pressure: Capable of handling high-pressure hydraulic system requirements
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 7/8-14 |
| Thread B2 Drill In | 0.484 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1 |
| Overall Length L In | 1.6 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.1789 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 1.6 |
