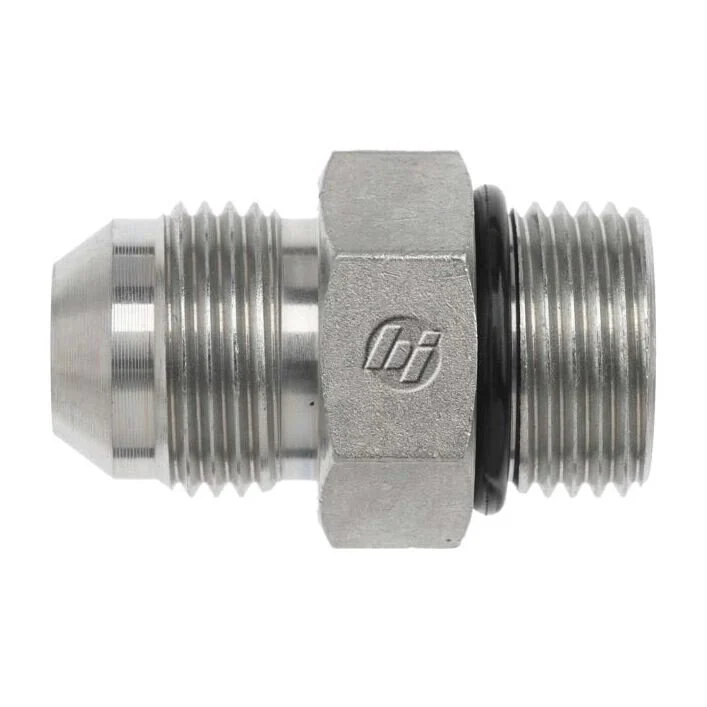

This straight hydraulic fitting is engineered for robust and adaptable connections in hydraulic systems. It features a #8 Male JIC (SAE 37-degree flare) thread on one end and a larger #12 Male SAE O-Ring Boss (MORB) thread on the other, facilitating seamless transitions between different component sizes. Constructed from durable steel and protected by Cr3 plating, it ensures exceptional longevity and superior corrosion resistance in challenging environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 5000 psi. Its efficient design, with a 1.25" body hex and 1.76" overall length, allows for straightforward and secure system integration.
- Hydraulic Adapter: Connects #8 Male JIC to #12 Male O-Ring Boss for size conversion
- Durable Steel Build: Ensures robust performance and extended product life in demanding applications
- Corrosion-Resistant Cr3 Plating: Provides excellent protection against rust and wear
- Integrated NBR O-Ring: Guarantees a reliable, leak-proof seal for optimal system integrity
- 5000 psi Pressure Rating: Capable of handling high dynamic pressures in hydraulic systems
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.25 |
| Overall Length L In | 1.76 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.2972 |
| Maximum Dynamic Pressure Psi | 5000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 2.75 |
