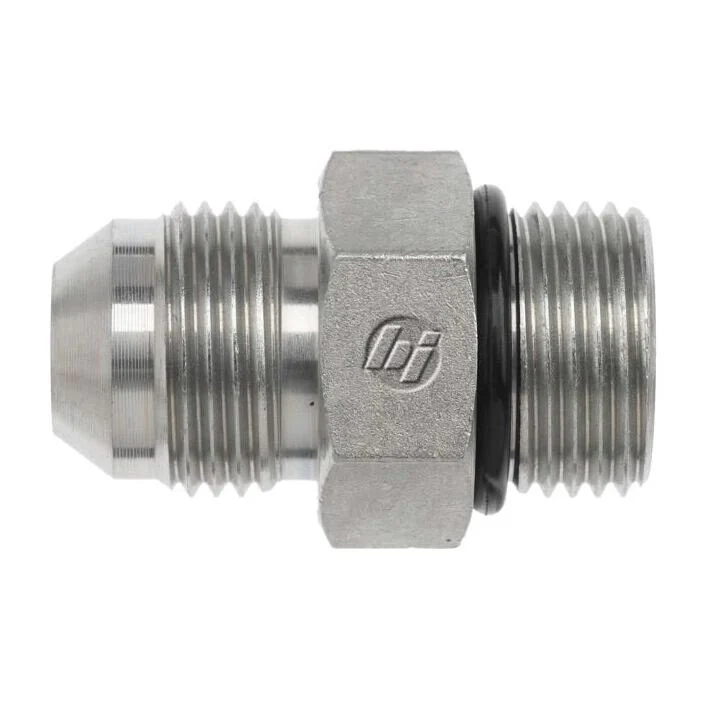

This straight hydraulic fitting is engineered for robust and significant size adaptation within hydraulic systems. It features a #8 Male JIC (SAE 37-degree flare) thread on one end and a larger #16 Male SAE O-Ring Boss (MORB) thread on the other, facilitating secure and leak-free transitions between components. Constructed from durable steel and protected by Cr3 plating, it ensures exceptional longevity and superior resistance to corrosion in challenging environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 4000 psi. Its efficient design, with a 1.5" body hex and 1.79" overall length, allows for straightforward and secure system integration.
- Large Size Adapter: Connects #8 Male JIC to #16 Male O-Ring Boss for substantial size transition
- Heavy-Duty Steel Construction: Ensures robust performance and extended product life under pressure
- Corrosion-Resistant Cr3 Plating: Provides excellent protection against rust and environmental wear
- Integrated NBR O-Ring: Guarantees a reliable, leak-proof seal for optimal system integrity
- 4000 psi Pressure Rating: Capable of handling high dynamic pressures in hydraulic applications
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 3/4-16 |
Thread B1 Drill In | 0.391 |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male SAE O-Ring Boss |
Thread B2 Size | 1-5/16-12 |
Thread B2 Drill In | 0.844 |
Thread B2 Specification | SAE J514 |
Body Hex In | 1.5 |
Overall Length L In | 1.79 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
O-Ring / Seal Material | NBR |
Weight Lbs | 0.3917 |
Maximum Dynamic Pressure Psi | 4000 |
California Residents | Prop-65 Warning |
Cubic in. (L × W × H) | 4.028 |
