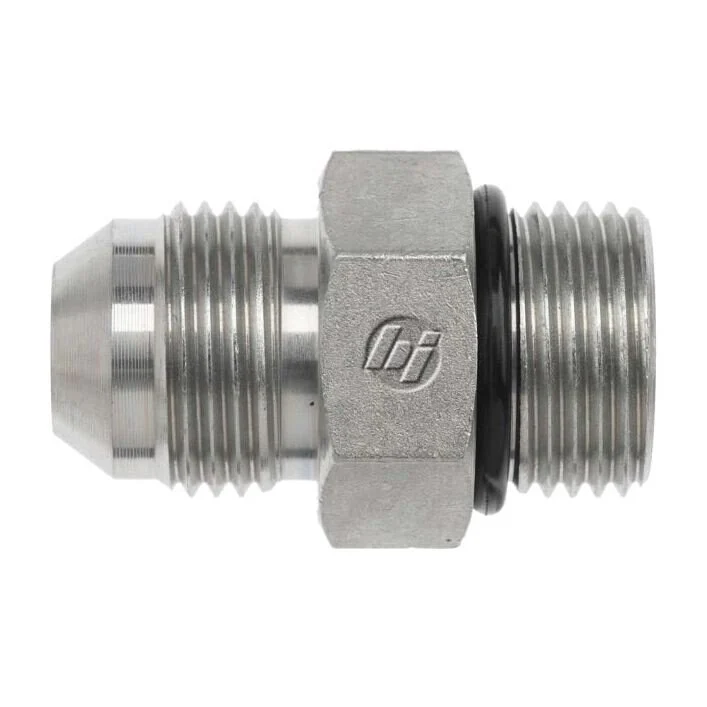

This straight hydraulic fitting is engineered for reliable and consistent connections within hydraulic systems. It features a #10 Male JIC (SAE 37-degree flare) thread on one end and a corresponding #10 Male SAE O-Ring Boss (MORB) thread on the other, ensuring secure and leak-free integration. Constructed from durable steel and protected by Cr3 plating, it ensures exceptional longevity and superior resistance to corrosion in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 5000 psi. Its efficient design, with a 1" body hex and 1.7" overall length, allows for straightforward and secure system integration.
- Dual #10 Connections: Features both #10 Male JIC and #10 Male O-Ring Boss threads for specific compatibility
- Robust Steel Construction: Guarantees durable performance and extended product lifespan
- Corrosion-Resistant Cr3 Plating: Provides enhanced protection against rust and wear in challenging conditions
- Integrated NBR O-Ring Seal: Ensures a highly reliable and leak-proof connection
- 5000 psi Rating: Suitable for demanding high-pressure hydraulic applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.484 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 7/8-14 |
| Thread B2 Drill In | 0.484 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1 |
| Overall Length L In | 1.7 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.2 |
| Maximum Dynamic Pressure Psi | 5000 |
