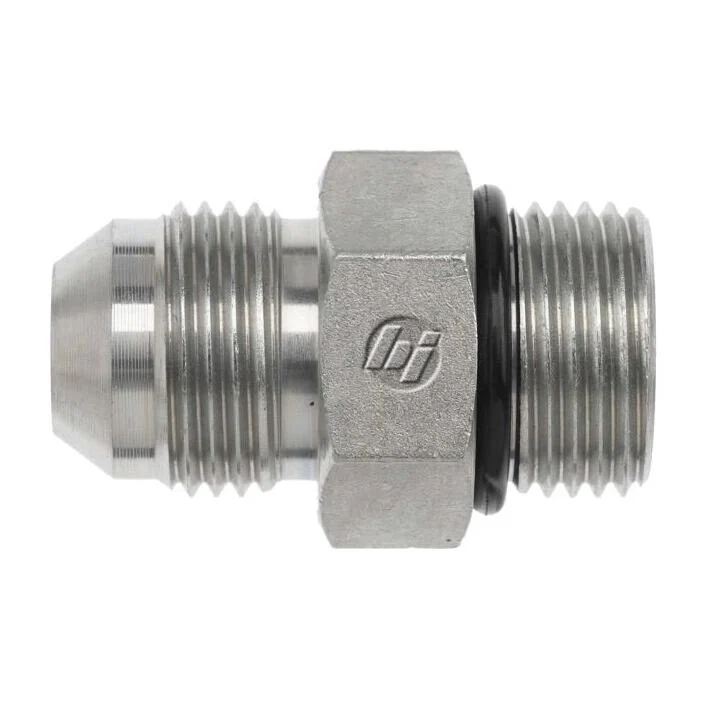

This straight hydraulic fitting is engineered for robust and reliable size adaptation within hydraulic systems. It features a #10 Male JIC (SAE 37-degree flare) thread on one end and a larger #12 Male SAE O-Ring Boss (MORB) thread on the other, facilitating secure and leak-free transitions between different components. Constructed from durable steel and protected by Cr3 plating, it ensures exceptional longevity and superior resistance to corrosion in challenging environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 5000 psi. Its efficient design, with a 1.25" body hex and 1.86" overall length, allows for straightforward and secure system integration.
- Size Adapting Connector: Links #10 Male JIC to #12 Male O-Ring Boss for versatile system integration
- Heavy-Duty Steel Build: Guarantees robust performance and an extended product life under pressure
- Corrosion-Resistant Cr3 Plating: Provides excellent protection against rust and harsh environmental conditions
- Integrated NBR O-Ring Seal: Ensures a highly reliable and leak-proof connection for fluid integrity
- 5000 psi Dynamic Pressure: Capable of handling high-pressure requirements in demanding hydraulic applications
Thread B1 Type | Male JIC SAE 37 Degree Flare |
Thread B1 Size | 7/8-14 |
Thread B1 Drill In | 0.484 |
Thread B1 Specification | SAE J514 |
Thread B2 Type | Male SAE O-Ring Boss |
Thread B2 Size | 1-1/16-12 |
Thread B2 Drill In | 0.609 |
Thread B2 Specification | SAE J514 |
Body Hex In | 1.25 |
Overall Length L In | 1.86 |
Shape | Straight |
Body Material | Steel |
Raw Material Type | Straight Steel |
Plating | Cr3 |
O-Ring / Seal Material | NBR |
Weight Lbs | 0.2983 |
Maximum Dynamic Pressure Psi | 5000 |
California Residents | Prop-65 Warning |
Cubic in. (L × W × H) | 2.906 |
