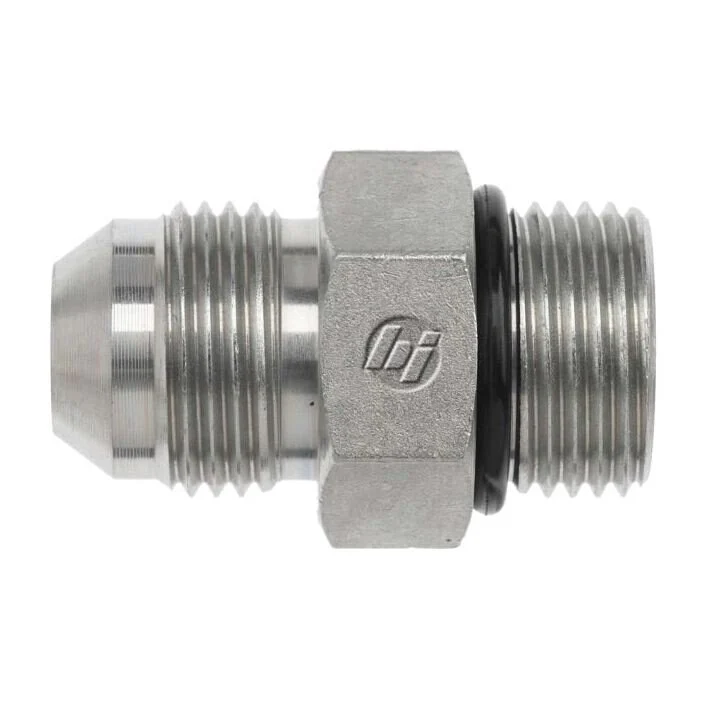

This straight hydraulic fitting is engineered for robust size reduction and reliable connections within hydraulic systems. It features a larger #16 Male JIC (SAE 37-degree flare) thread on one end and a smaller #12 Male SAE O-Ring Boss (MORB) thread on the other, facilitating seamless integration of components. Constructed from durable steel and protected by Cr3 plating, it ensures exceptional longevity and superior resistance to corrosion in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is capable of withstanding a maximum dynamic pressure of 4000 psi. Its efficient design, with a 1.375" body hex and 2.04" overall length, allows for straightforward and secure system integration.
- Size Reducing Connector: Links #16 Male JIC to #12 Male O-Ring Boss for versatile hydraulic connections
- Heavy-Duty Steel Construction: Guarantees robust performance and extended product life under pressure
- Corrosion-Resistant Cr3 Plating: Provides excellent protection against rust and environmental wear
- Integrated NBR O-Ring Seal: Ensures a highly reliable and leak-proof connection for fluid integrity
- 4000 psi Dynamic Pressure: Capable of handling high-pressure requirements in demanding hydraulic applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/16-12 |
| Thread B1 Drill In | 0.844 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 1-1/16-12 |
| Thread B2 Drill In | 0.609 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 1.375 |
| Overall Length L In | 2.04 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.416 |
| Maximum Dynamic Pressure Psi | 4000 |
| California Residents | Prop-65 Warning |
| Cubic in. (L × W × H) | 3.857 |
