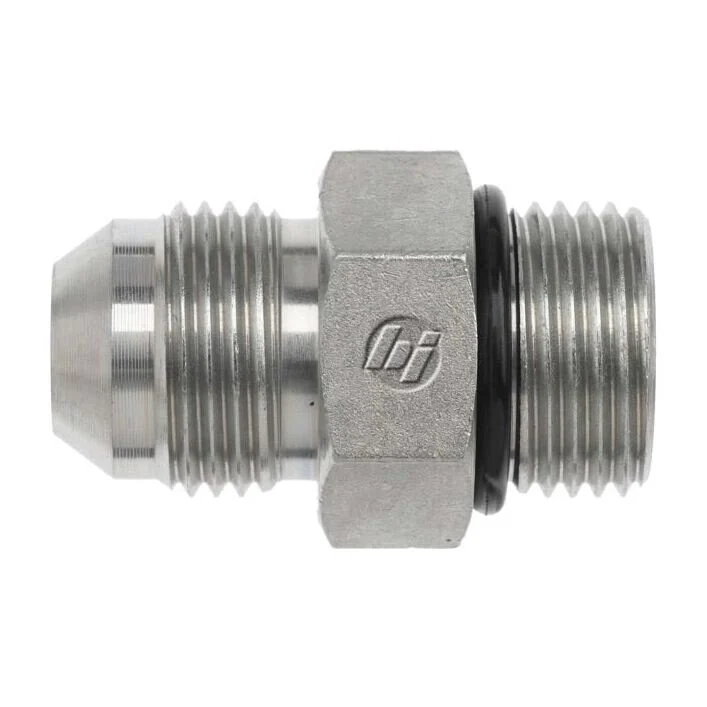

The 6400-20-24-O is a high-performance hydraulic fitting engineered for secure, leak-proof operation in high-pressure fluid systems. Featuring a 1-1/4" Male JIC 37° flare connection paired with a 1-1/2" Male O-Ring Boss (MORB), it ensures precise thread engagement and superior sealing reliability. Manufactured from high-strength straight steel with Cr3 plating, this fitting delivers excellent corrosion resistance and long service life. The NBR O-ring enhances sealing capability under demanding hydraulic flows. Ideal for heavy machinery, construction equipment, and industrial hydraulic circuits requiring consistent pressure handling up to 3000 PSI.
Fitting Chart- 1-1/4" Male JIC 37° flare x 1-1/2" Male O-Ring Boss
- Precision SAE J514 compliant threads for secure connection
- Durable straight steel body with Cr3 corrosion-resistant plating
- NBR O-ring for reliable, leak-free sealing
- Handles dynamic pressure up to 3000 PSI
- Suitable for heavy-duty hydraulic applications
| Thread B1 Type | Male JIC SAE 37 Degree Flare |
| Thread B1 Size | 1-5/8-12 |
| Thread B1 Drill In | 1.078 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male SAE O-Ring Boss |
| Thread B2 Size | 1-7/8-12 |
| Thread B2 Drill In | 1.312 |
| Thread B2 Specification | SAE J514 |
| Body Hex In | 2.125 |
| Overall Length L In | 2.24 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| O-Ring / Seal Material | Nbr |
| Weight Lbs | 0.974 |
| Maximum Dynamic Pressure Psi | 3000 |
| California Residents | Prop-65 Warning |
| Cubic Inch Space L X W X H | 10.115 |
