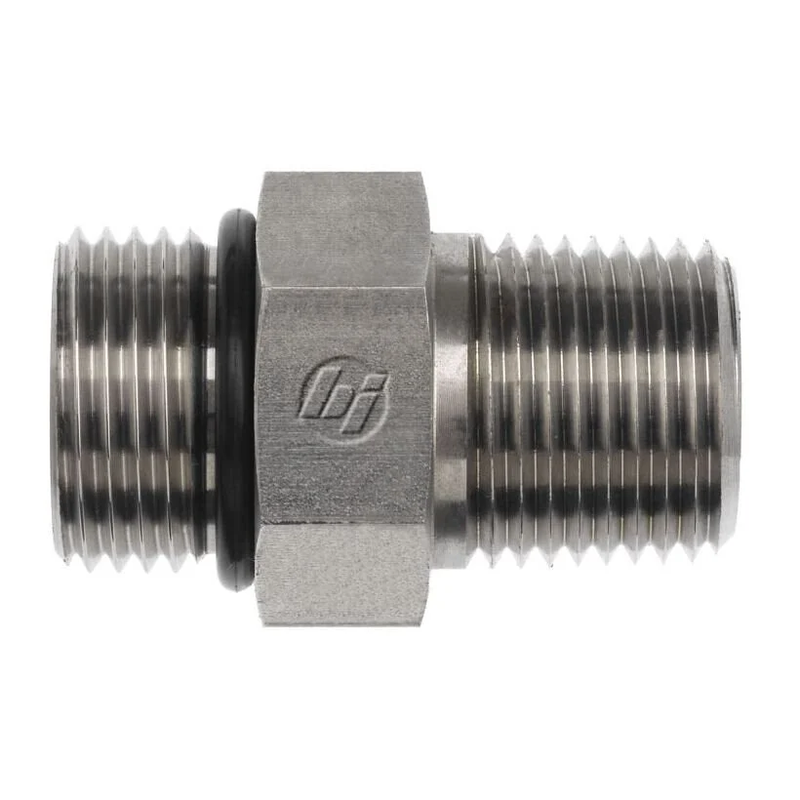

This straight hydraulic fitting is engineered for versatile connections between different thread standards in hydraulic systems. It features a #6 Male SAE O-Ring Boss (MORB) thread on one end and a 1/4" MNPT (Male NPTF) thread on the other, ensuring secure and leak-free transitions. Constructed from durable steel and protected by Cr3 plating, it offers excellent longevity and superior resistance to corrosion, even in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is built to withstand various operational conditions. Its compact design, with a 0.688" body hex and 1.29" overall length, allows for efficient system integration.
- Mixed Thread Types: Connects #6 Male O-Ring Boss to 1/4" Male NPTF for hydraulic adaptation
- Durable Steel Construction: Ensures robust performance and extended product lifespan
- Corrosion-Resistant Cr3 Plating: Provides enhanced protection against rust and wear
- Integrated NBR O-Ring Seal: Guarantees a reliable, leak-proof connection
- SAE J514 & J476 Compliant: Adheres to industry standards for both thread types
| Thread B1 Type | Male SAE O-Ring Boss |
| Thread B1 Size | 9/16-18 |
| Thread B1 Drill In | 0.297 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/4-18 |
| Thread B2 Drill In | 0.281 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.688 |
| Overall Length L In | 1.29 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.06 |
