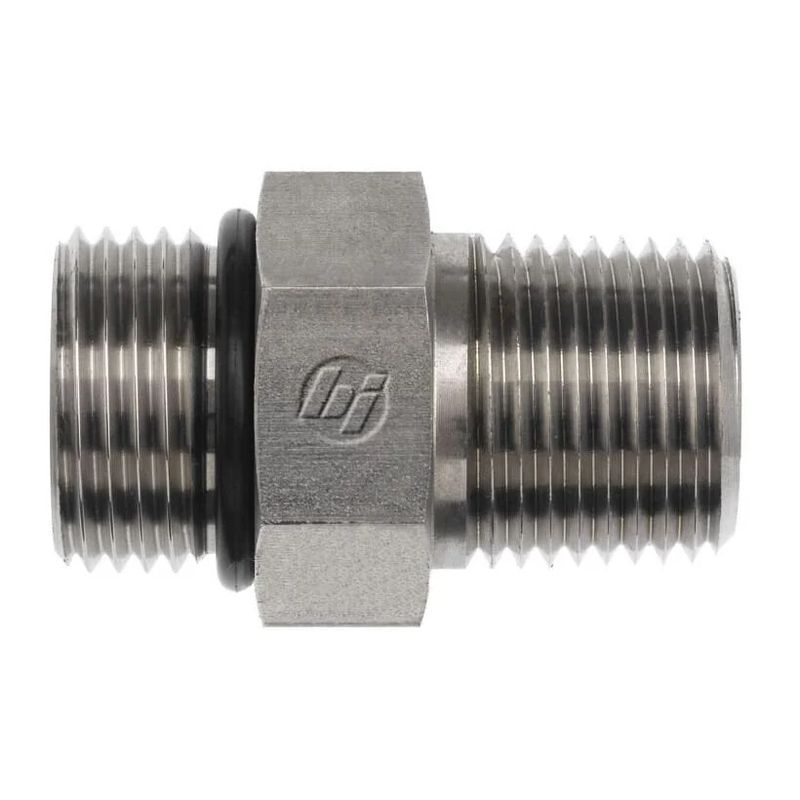

This straight hydraulic fitting is designed for robust and reliable connections between different thread standards in hydraulic systems. It features a #8 Male SAE O-Ring Boss (MORB) thread on one end and a 1/2" MNPT (Male NPTF) thread on the other, ensuring secure and leak-free transitions. Constructed from durable steel and protected by Cr3 plating, it offers excellent longevity and superior corrosion resistance, even in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is built to withstand various operational conditions. Its efficient design, with a 0.875" body hex and 1.55" overall length, allows for straightforward and secure system integration.
- Thread Type Conversion: Connects #8 Male O-Ring Boss to 1/2" Male NPTF for broad compatibility
- High-Strength Steel Body: Ensures durable performance and extended product lifespan
- Corrosion-Resistant Cr3 Plating: Provides superior protection against rust and environmental wear
- Integrated NBR O-Ring Seal: Guarantees a reliable, leak-proof connection for hydraulic integrity
- Dual Standard Compliance: Adheres to both SAE J514 and SAE J476 specifications
| Thread B1 Type | Male SAE O-Ring Boss |
| Thread B1 Size | 3/4-16 |
| Thread B1 Drill In | 0.391 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 1/2-14 |
| Thread B2 Drill In | 0.531 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 0.875 |
| Overall Length L In | 1.55 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.14 |
