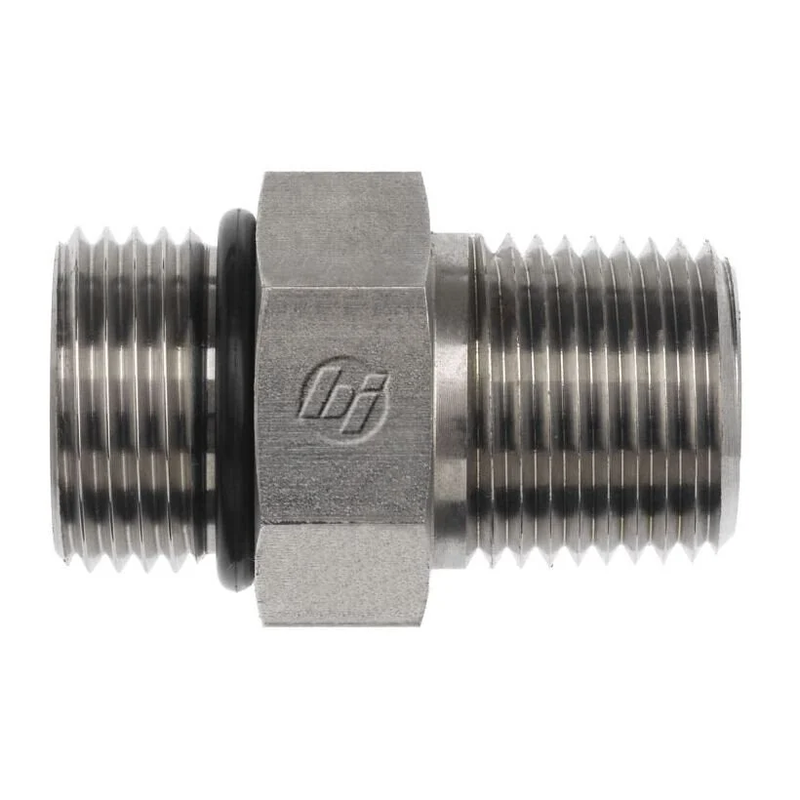

This straight hydraulic fitting is designed for robust and reliable connections between different thread standards in hydraulic systems. It features a #10 Male SAE O-Ring Boss (MORB) thread on one end and a 3/8" MNPT (Male NPTF) thread on the other, ensuring secure and leak-free transitions. Constructed from durable steel and protected by Cr3 plating, it offers excellent longevity and superior corrosion resistance, even in demanding environments. Equipped with an NBR O-ring for a reliable seal, this fitting is built to withstand various operational conditions. Its efficient design, with a 1" body hex and 1.46" overall length, allows for straightforward and secure system integration.
- Thread Adaptation: Converts #10 Male O-Ring Boss to 3/8" Male NPTF for versatile connections
- High-Quality Steel: Ensures robust performance and extended product lifespan
- Cr3 Plating: Provides superior protection against corrosion and wear
- Integrated NBR O-Ring: Guarantees a reliable, leak-proof seal for system integrity
- Dual SAE Specification: Complies with both SAE J514 and SAE J476 standards
| Thread B1 Type | Male SAE O-Ring Boss |
| Thread B1 Size | 7/8-14 |
| Thread B1 Drill In | 0.484 |
| Thread B1 Specification | SAE J514 |
| Thread B2 Type | Male NPTF |
| Thread B2 Size | 3/8-18 |
| Thread B2 Drill In | 0.406 |
| Thread B2 Specification | SAE J476 |
| Body Hex In | 1 |
| Overall Length L In | 1.46 |
| Shape | Straight |
| Body Material | Steel |
| Raw Material Type | Straight Steel |
| Plating | Cr3 |
| O-Ring / Seal Material | NBR |
| Weight Lbs | 0.15 |
| California Residents | Prop-65 Warning |
